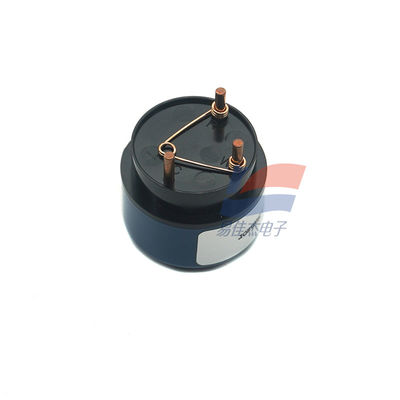

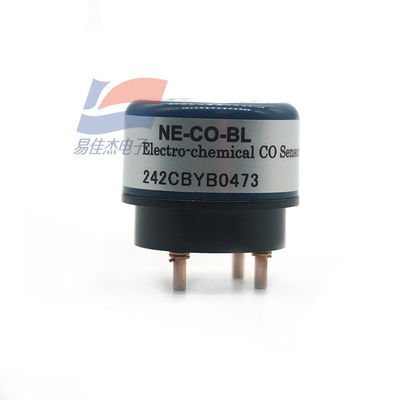

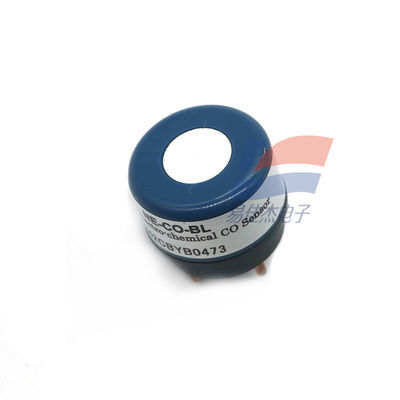

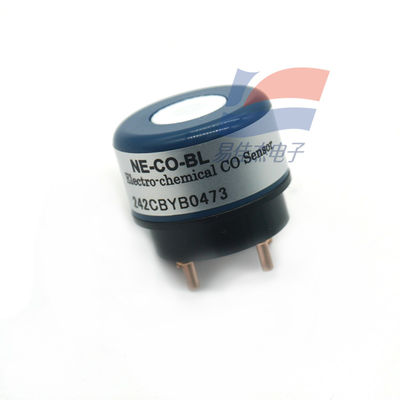

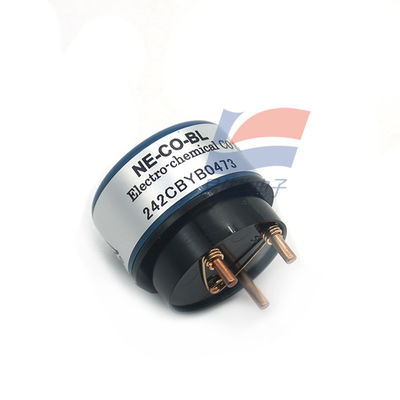

NE4-CO-SI NE-CO-SI Electrochemical Carbon Monoxide CO Gas Sensor for Accurate CO Detection Pressure range 0.9-1.1atm

Product Description:

YJJ NE4-CO-SI NE-CO-SI Electrochemical Carbon Monoxide CO Gas Sensor

Features:

Ne-co-p and NE-CO are industrial carbon monoxide gas sensors, because its shape and civil NAP-505 is the same plate type, so it can be directly welded to PCB. However, its extensive characteristics and resistance are basically the same as NE-CO, and in line with the world's industrial-grade sensor standards, can be applied in a wide range of fields.

project

Characteristics, ratings, etc

Detection gas concentration range: CO 0 ~ 1000ppm

Output current: 40±10nA/ppmof CO

Repeatability: less than ± 2%

Reaction time T90: less than 30 seconds.

Zero drift: less than 10ppm(-20-50℃)

Temperature: -20 ~ +50℃

Humidity: 15 to 90% RH

Pressure range: 0.9 -- 1.1atm

Service life: 2 years

Storage conditions: 0-20 ℃ is recommended

Zero offset: less than 5ppm

Specifications:
