AFD5004R10 NDIR Infrared Methane (CH4) Gas Sensor for Residential & Civil Gas Safety Monitoring Fixed & Portable Detectors

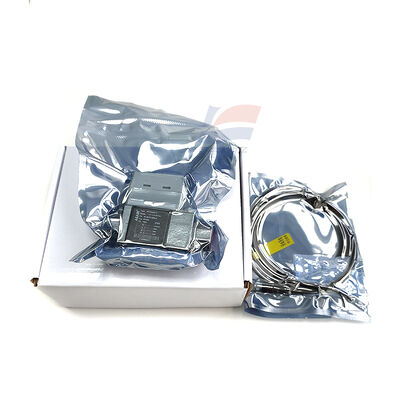

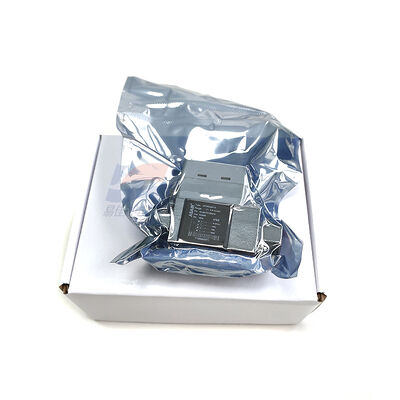

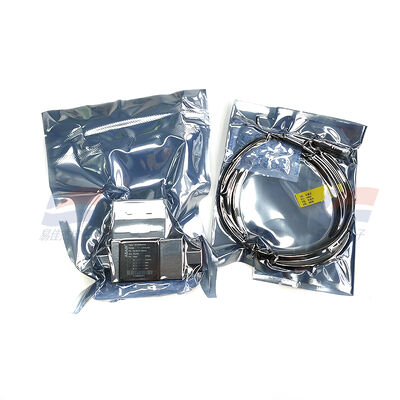

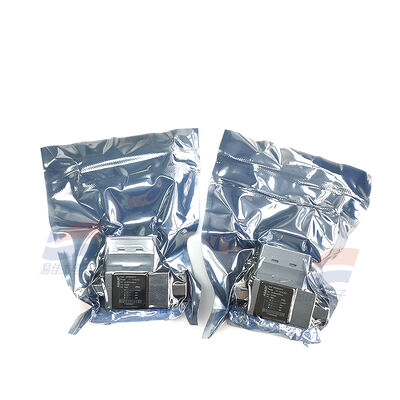

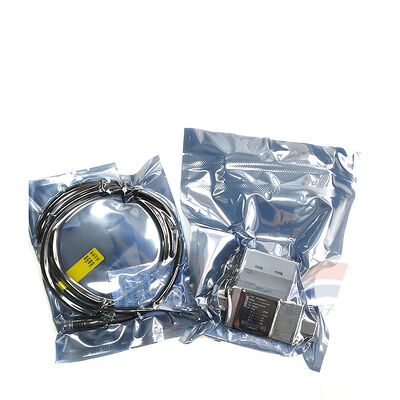

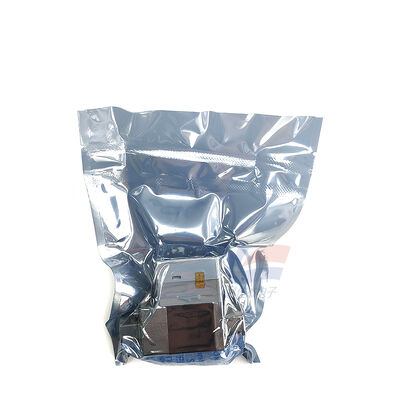

Large Image : AFD5004R10 NDIR Infrared Methane (CH4) Gas Sensor for Residential & Civil Gas Safety Monitoring Fixed & Portable Detectors

Product Details:

Place of Origin:	CN
Model Number:	AFD5004R10

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

AFD5004R10 NDIR Infrared Methane (CH4) Gas Sensor for Residential & Civil Gas Safety Monitoring Fixed & Portable Detectors

Description

Standard Measuring Range:	0 -100% LEL	Resolution:	0.1% LEL
Detection Accuracy:	±3% FS	T90 Response Time:	≤ 30 S
Zero Drift:	≤ 1% FS / Month	Power Supply Voltage:	3.3 V-5.0 V DC
Highlight:	NDIR infrared methane gas sensor , CH4 gas sensor for residential monitoring , fixed portable methane gas detector

AFD5004R10 NDIR Infrared Methane (CH4) Gas Sensor for Residential & Civil Gas Safety Monitoring Fixed & Portable Detectors

Product Model	AFD5004R10
Detected Gas	Methane (CH4)
Working Principle	NDIR Non-dispersive Infrared Principle
Standard Measuring Range	0 -100% LEL
Resolution	0.1% LEL
Detection Accuracy	±3% FS (standard condition)
T90 Response Time	≤ 30 s
Zero Drift	≤ 1% FS / month
Linearity Error	≤ ±2% FS
Power Supply Voltage	3.3 V – 5.0 V DC
Average Working Current	≤ 15 mA
Output Signal	UART Digital Signal
Operating Temperature Range	-20℃ ~ 55℃
Operating Humidity Range	10%–90% RH (non-condensing)
Operating Pressure Range	80 – 120 kPa
Storage Temperature Range	-30℃ ~ 60℃
Service Life	≥ 10 years (standard ambient environment)
Preheating Time	≤ 60 s

AFD5004R10 NDIR Infrared Methane (CH4) Gas Sensor for Residential & Civil Gas Safety Monitoring Fixed & Portable Detectors 0
