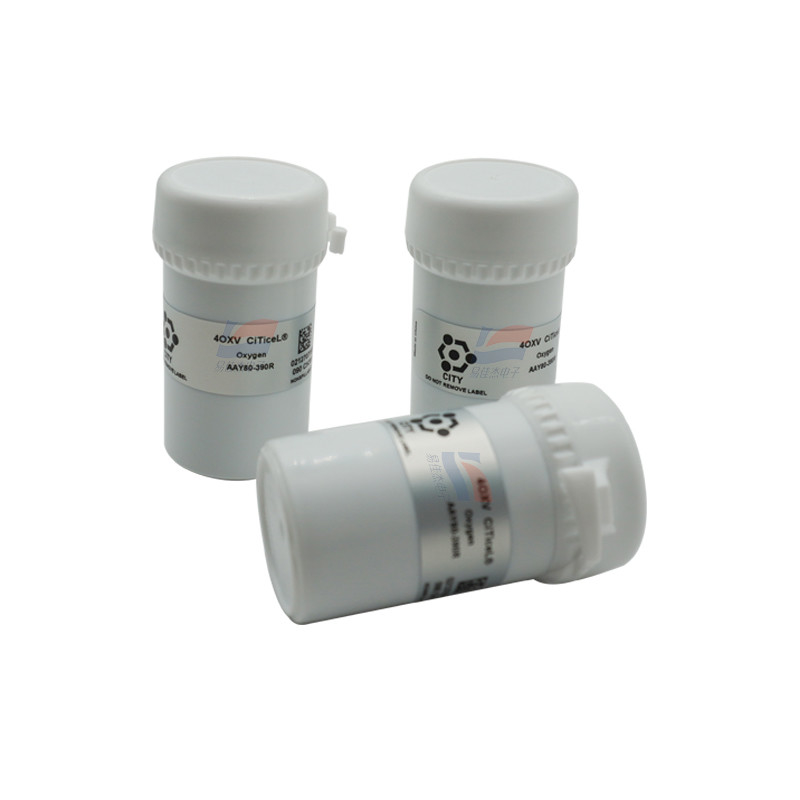

40X-V SR-X2V AAY80-390 Electrochemical Gas Oxygen Sensors

Large Image : 40X-V SR-X2V AAY80-390 Electrochemical Gas Oxygen Sensors

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	4OX-V SR-X2V AAY80-390

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26$
Packaging Details:	Box
Delivery Time:	3-5Workingdays
Payment Terms:	T/T
Supply Ability:	5000PCS/Month

Contact Now

40X-V SR-X2V AAY80-390 Electrochemical Gas Oxygen Sensors

Description

Usage:

Gas Sensor

Output:

0-10V Or 4-20mA

Material:

Aluminum

Highlight:

SR-X2V

AAY80-390

SR-X2V AAY80-390 40X-V Electrochemical Gas Oxygen Sensors

IMPORTANT NOTES

Obstruction of the vent hole will compromise

performance, and must be avoided. Do not remove

label.

Adequate free volume should be provided below the

sensor to ensure full performance.

All tolerances ±0.15 mm unless otherwise stated.

DO NOT solder to pins.

All performance data is based on conditions at 20ºC,

50% RH and 1013 mbar.

Typical Applications

General purpose, portable or fxed life safety.

Technical Specifcations

Technology	Electrochemical
Measurement Range	1-25% vol. O2
Maximum Overload	30% vol. O2
Output Signal	0.10 ± 0.02 mA in Air
Response Time (T90)	＜15 Seconds
Zero Current (Offset)	<0.6% vol. O2
Linearity	Can be considered linear in many cases.

MECHANICAL

Casing Material	ABS
Weight	<16 g
Orientation Sensitivity	<0.2%vol. O2 equivalent

LIFETIME

Long Term Output Drift	<2% signal/month Typically <5% over operating life
Expected Operating Life	Minimum 24 months in air
Storage Life	6 months in original packaging
Warranty Period	24 months from date of despatch

40X-V SR-X2V AAY80-390 Electrochemical Gas Oxygen Sensors 0

40X-V SR-X2V AAY80-390 Electrochemical Gas Oxygen Sensors 1
