40X-V SR-X2V AAY80-390 Gas Oxygen Sensors Electrochemical ABS Materials

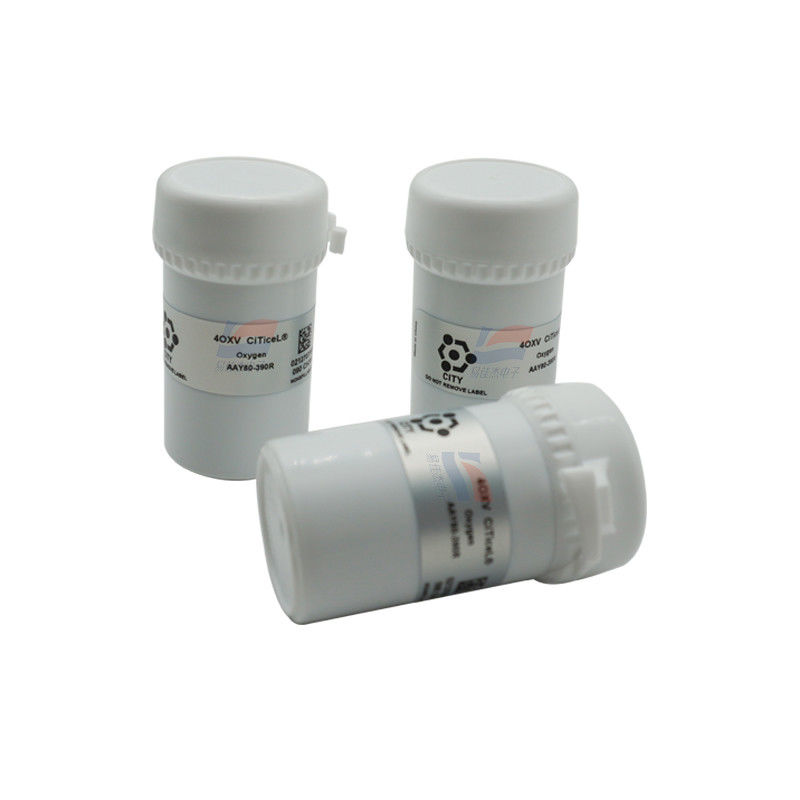

Large Image : 40X-V SR-X2V AAY80-390 Gas Oxygen Sensors Electrochemical ABS Materials

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	4OX-V SR-X2V AAY80-390

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	T/T
Supply Ability:	1000PCS/Month

Contact Now

40X-V SR-X2V AAY80-390 Gas Oxygen Sensors Electrochemical ABS Materials

Description

Technology:

Electrochemical

Measurement Range:

1-25% Vol. O2

Maximum Overload:

30% Vol. O2

Output Signal:

0.10 +0.02 MA In Air

Highlight:

SR-X2V

AAY80-390

40X-V SR-X2V AAY80-390 Gas Oxygen Sensors Electrochemical ABS Materials

Typical Applications

General purpose, portable or fxed life safety.

Technical Specifcations

Technology	Electrochemical
Measurement Range	1-25% vol. O2
Maximum Overload	30% vol. O2
Output Signal	0.10 ± 0.02 mA in Air
Response Time (T90)	＜15 Seconds
Zero Current (Offset)	<0.6% vol. O2
Linearity	Can be considered linear in many cases.

MECHANICAL

Casing Material	ABS
Weight	<16 g
Orientation Sensitivity	<0.2%vol. O2 equivalent

LIFETIME

Long Term Output Drift	<2% signal/month Typically <5% over operating life
Expected Operating Life	Minimum 24 months in air
Storage Life	6 months in original packaging
Warranty Period	24 months from date of despatch

40X-V SR-X2V AAY80-390 Gas Oxygen Sensors Electrochemical ABS Materials 0
