Product Details:
|
| Usage: | Humidity Sensor | Output: | Analog Sensor |
|---|---|---|---|
| Temperature Range: | -40℃-80℃ | Humidity Range: | <0-100%RH |
| Product Category: | Board Mount Humidity Sensor | ||
| Highlight: | HIH-4000-003,HVAC Temperature Sensor 200 µA |
||

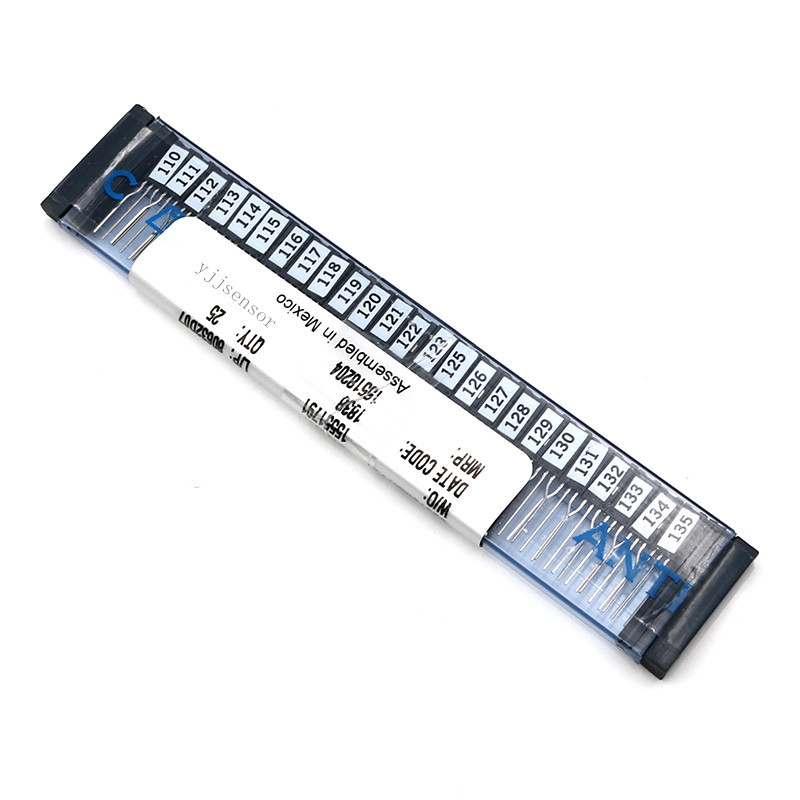

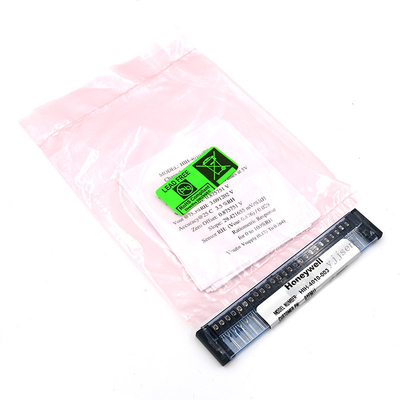

HIH-4000-003 Humidity Sensor Current Draw Of 200 µA Use For HVAC
The HIH-4000 Series delivers instrumentation-quality RH (Relative Humidity) sensing performance in a competitively priced, solderable SIP (Single In-line Package).
Available in two lead spacing configurations, the RH sensor is a laser trimmed, thermoset polymer capacitive sensing element with on-chip integrated signal conditioning.
The sensing element's multilayer construction provides excellent resistance to most application hazards such as wetting, dust, dirt, oils and common environmental chemicals.
FEATURES
*Molded thermoset plastic housing
*Near linear voltage output vs % RH
*Laser trimmed interchangeability
*Low power design
*Enhanced accuracy
*Fast response time
*Stable, low drift performance
*Chemically resistant
Specifications
| Accuracy (best fit straight line) | -3.5~+3.5% RH |
| Hysterisis | 3% RH |
| Repeatability | ±0.5% RH |
| Response time | 5S |
| Stability | 1.2% RH |
| Voltage supply | 4-5.8Vdc |
| Current supply | -200~500µA |
