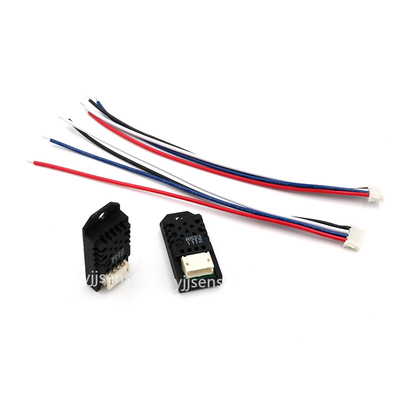

HTG3515CH Temperature Relative Humidity Sensor Voltage Output

Product Description:

HTG3515CH Temperature Relative Humidity Sensor Voltage Output

Features:

Based on Humirel's humidity capacitors, the HTG3515CH is a module with an integrated temperature and humidity output interface, specifically designed for OEM customers where reliable, precise measurements are required. With micro control chip, humidity is linear voltage output, with 10Kohm NTC temperature output. HTG3515CH can be used in mass production and where high measurement accuracy is required.

Air conditioning, HVAC, refrigerator, weather station, machine station, communication room, cultivation room, maintenance room, drying cabinet and so on.

Environmental protection product

Full range interchangeability

High reliability and long term stability

Accuracy: + / - 3% RH @ 55% RH

The supply voltage must be within the specified range

Through 10Kohm NTC resistance measurement temperature accuracy is +/-1% direct output in 5Vdc power supply output voltage value is 1~ 3.6V can be measured 0~ 100%RH relative humidity

Specifications:
