Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 10 Ppm |
|---|---|---|---|
| Maximum Overload: | 50 Ppm | Output Signal: | 4600 ± 1200 NA/ppm |
| Resolution (Electronics Dependent): | < 0.01 Ppm | T60 Response Time: | < 30 S |
| Typical Baseline Range (pure Air, 20°C): | -0.1 Ppm To 0.1 Ppm | Maximum Zero Shift (+20°C To +40°C): | 0.3 Ppm |
| Highlight: | CH2O Formaldehyde Gas Sensor,Formaldehyde Gas Sensor Highly Sensitive,C-10 CH2O Sensor |
||

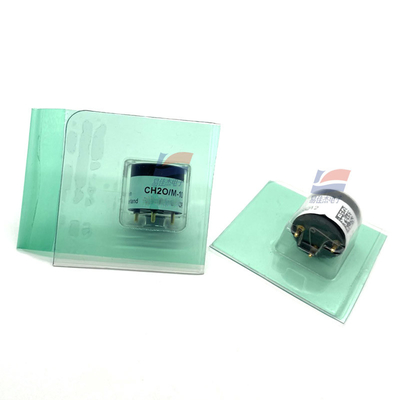

CH2O/C-10 Formaldehyde Gas Sensor 3 Electrode Electrochemical Highly Sensitive CH2O Measurement
Applications
• Continuous Air Quality Monitoring
• Safety and Environmental Control
Formaldehyde Gas Sensor CH2O/C-10
Cross Sensitivity Data
The table below does not claim to be complete. Interfering gases should not be used for
calibration. Please contact Membrapor AG for further support regarding cross sensitivities.
Specification Sheet
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not recommended |
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -40 °C to 50 °C |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | Abrupt changes in RH causes a short term transient signal |
| Expected Operation Life | 3 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month |
| Storage Life | 6 months in container |
| Rec. Storage Temperature | 5°C - 20°C |
| Warranty Period | 12 months from date of dispatch |
