Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 100 Ppm |
|---|---|---|---|
| Maximum Overload: | 200 Ppm | Inboard Filter: | To Remove Acidic Gases |
| Output Signal: | 200 ± 50 NA/ppm | Resolution (Electronics Dependent): | < 0.1 Ppm |
| T90 Response Time: | < 30 S | Typical Baseline Range (pure Air, 20°C): | -1 Ppm To 1 Ppm |
| Maximum Zero Shift (+20°C To +40°C): | See Graph | Repeatability: | < 2 % Of Signal |
| Highlight: | Carbon Disulfide Gas Sensor,Gas Sensor 200 ppm,CS2 Gas Detector |
||

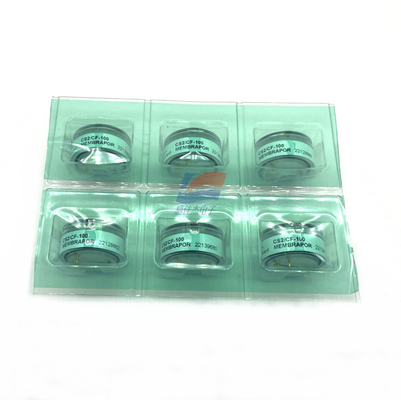

CS2/CF-100 Carbon Disulfide Gas Sensor In Compact Housing Safety Control
Key Features
• Highly selective and sensitive CS2 detection
• Ideal for TLV-TWA level measurements
Applications
• Discontinuous Measurement
• Safety and Process Control
Specification
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | not recommended |
| Conformity to RoHS directive | RoHS Compliance |
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -40 °C to 50 °C |
| Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
| Expected Operation Life | 2 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month |
| Storage Life | 6 months in container |
| Rec. Storage Temperature | 5°C - 20°C |
| Warranty Period | 12 months from date of dispatch |
Temperature dependence
The output of an electrochemical sensor varies with temperature. The graphs below show the temperature-dependent variation of baseline and sensitivity, respectively. The results shown here are raw data (batch average) without any post-processing steps. The sensitivity and baseline are referenced to the signal at 20°C (reference point). Please note: It is highly recommended to acquire the temperature dependence curves with the whole instrument. The sampling system, the humidity, the electronics and the interaction between the electronics and the sensor have a significant impact on the temperature dependence of the final measurement reading.
