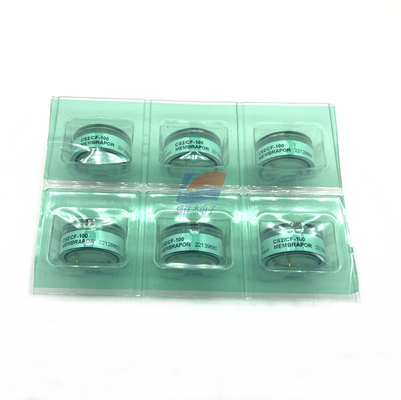

CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control

CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control
CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control

Large Image :  CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control

Product Details:
Place of Origin: Switzerland
Brand Name: MEMBRAPOR
Model Number: CS2/CF-100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Box
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/Month

CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control

Description
Operation Principle: 3-Electrode Electrochemical Nominal Range: 0 - 100 Ppm
Maximum Overload: 200 Ppm Inboard Filter: To Remove Acidic Gases
Output Signal: 200 ± 50 NA/ppm Resolution (Electronics Dependent): < 0.1 Ppm
T90 Response Time: < 30 S Typical Baseline Range (pure Air, 20°C): -1 Ppm To 1 Ppm
Maximum Zero Shift (+20°C To +40°C): See Graph Repeatability: < 2 % Of Signal
Highlight:

Carbon Disulfide Gas Sensor

,

Gas Sensor 200 ppm

,

CS2 Gas Detector

CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control



Key Features
• Highly selective and sensitive CS2 detection
• Ideal for TLV-TWA level measurements
Applications
• Discontinuous Measurement
• Safety and Process Control



Specification

Rec. Load Resistor 10 - 33 Ω
Bias (V_Sens-V_Ref) not recommended
Conformity to RoHS directive RoHS Compliance
Relative Humidity Range 15 % to 90 % RH non-condensing
Temperature Range -40 °C to 50 °C
Pressure Range Atmospheric ± 10%
Pressure Coefficient N.D.
Humidity Effect None
Expected Operation Life 2 years in air
Expected Long Term Output Drift in air < 2 % signal loss per month
Storage Life 6 months in container
Rec. Storage Temperature 5°C - 20°C
Warranty Period 12 months from date of dispatch



Temperature dependence



The output of an electrochemical sensor varies with temperature. The graphs below show the temperature-dependent variation of baseline and sensitivity, respectively. The results shown here are raw data (batch average) without any post-processing steps. The sensitivity and baseline are referenced to the signal at 20°C (reference point). Please note: It is highly recommended to acquire the temperature dependence curves with the whole instrument. The sampling system, the humidity, the electronics and the interaction between the electronics and the sensor have a significant impact on the temperature dependence of the final measurement reading.





CS2/CF-100 Carbon Disulfide Gas Sensor 200 ppm CS2 Gas Detector In Housing Safety Control 0
