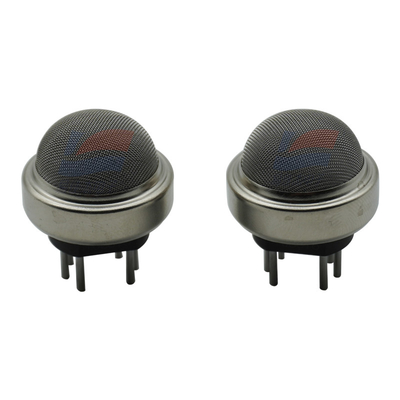

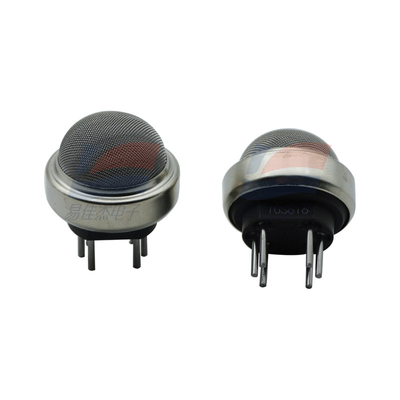

TGS816 Combustible Gas Sensor Variable Methane Gas Detector Sensor For Alarms

TGS816 Combustible Gas Use For Alarms And Detector Signal Output

Features:

* General purpose sensor with sensitivity to awide range of combustible gases

* High sensitivity to methane, propane, andbutane

* Long life and low cost* Ceramic base resistant to severeenvironment

Applications:

*Domestic gas leak detectors and alarms

*Portable gas detectors

  The sensing element of Figaro gas sensors is a tin dioxide (SnO2) semiconductorwhich has low conductivity in clean air. In the presence of a detectable gas,the sensor's conductivity increases depending on the gas concentration inthe air. A simple electrical circuit can convert the change in conductivity toan output signal which corresponds to the gas concentration.The TGS 816 is not only sensitive to a wide range of gases, it also has a ceramicbase which can withstand severe environments up to 200°C. Ithas highsensitivity to methane, propane, and butane, making it ideal for natural gasand LPG monitoring. The sensor can detect a wide range of gases, makingit an excellent, low cost sensor for a variety of applications.
