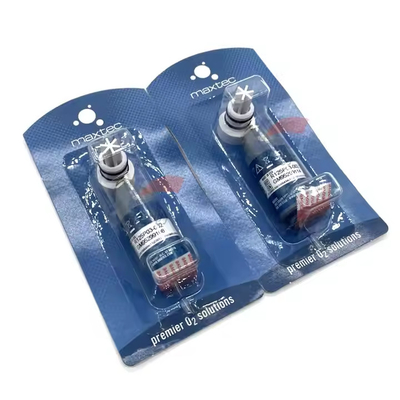

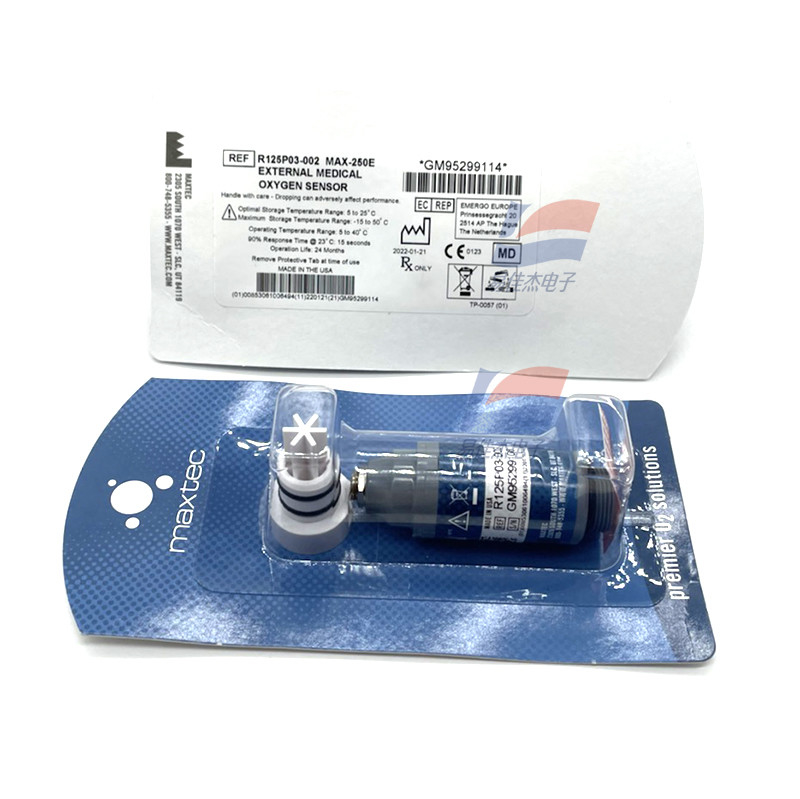

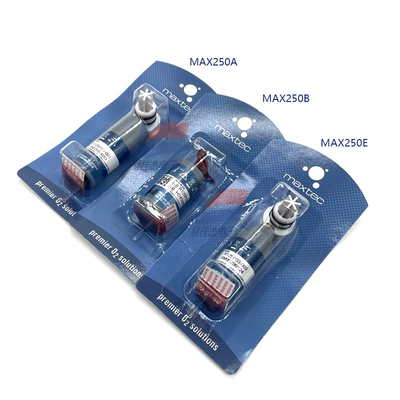

MAX250E R125P03-002 Oxygen Gas Sensor Electrochemical Dissolved For Breathing Equipment

Large Image : MAX250E R125P03-002 Oxygen Gas Sensor Electrochemical Dissolved For Breathing Equipment

Product Details:

Place of Origin:	USA
Brand Name:	MAXTEC
Model Number:	MAX250E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

MAX250E R125P03-002 Oxygen Gas Sensor Electrochemical Dissolved For Breathing Equipment

Description

Measuring Range:

0-100%

Life Span:

1500 000% Hours, About 8 Years In The Atmosphere

Output:

10 To 16 MV

Zero Point Voltage:

Below 0.5 Mv

Highlight:

MAX250E

R125P03-002

Electrochemical Dissolved Oxygen Sensor

MAX250E R125P03-002 Oxygen Gas Sensor Electrochemical Dissolved For Breathing Equipment

The Maxtec® line-up of replacement oxygen sensors are compatible with all major OEM’s in the scuba market. Our oxygen sensors are of the highest quality and are backed by excellent warranties. The 300-series scuba sensors can withstand atmospheric pressures of up to 16 lc,

have gold coated electric contacts for better conductivity, are made with high quality, water-repellent materials, have quick response times, and have long lifespans.

Measurement Range	0 to 100% O2
Output Range	10.0 to 15.5 mV
Zero Offset	≤0.50 mV
Response Time	≤15 seconds
Linearity	Within ±1.0%
Expected Life	> 1,500,000 %O2 hours
Temperature Compensation	<±3.0%
Operating Temperature Range	5° to 40°C
Storage Temperature Range	-15° to 50°C
Humidity Range	5% to 95% RH, non-condensing

MAX250E R125P03-002 Oxygen Gas Sensor Electrochemical Dissolved For Breathing Equipment 0
