4H2-1000 CLE-0613-400 Electrochemical Gas Hydrogen Sensor 0 To 1000 PPM

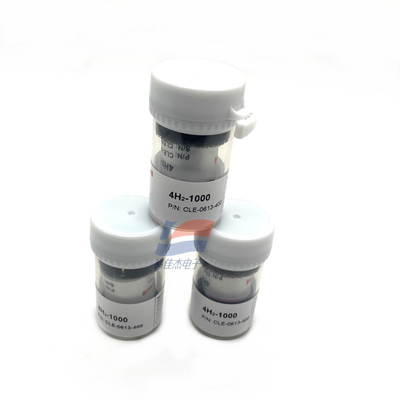

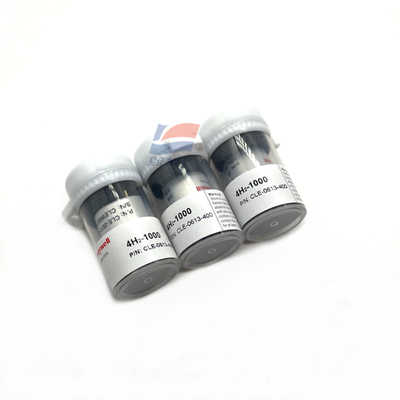

Large Image : 4H2-1000 CLE-0613-400 Electrochemical Gas Hydrogen Sensor 0 To 1000 PPM

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	4H2-1000 CLE-0613-400

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	canned
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

4H2-1000 CLE-0613-400 Electrochemical Gas Hydrogen Sensor 0 To 1000 PPM

Description

Product Model:	CLE-0613-400	Range:	0 To 1000 PPM
Maximum Load:	2000 PPM	Sensitivity:	0.02±0.01μA/ PPM
Baseline (20 ℃):	< Plus Or Minus 0.2 Mu A	Baseline Drift (-20 ℃ To 50 ℃):	Equivalent To 0 To 10 PPM
Resolution:	10 PPM	Response Time (T90):	≤70 Seconds
Highlight:	1000 PPM Electrochemical Hydrogen Sensor , 1000 PPM Hydrogen Sensor

Product Description:

4H2-1000 CLE-0613-400 Electrochemical Gas Hydrogen Sensor 0 To 1000 PPM

Features:

The working conditions

Operating temperature :-20 ℃ to 50 ℃

Operating humidity :15 to 90%RH (non-condensing)

Working pressure :90 to 110 kPa

Bias: 0 mV

Storage time :6 months (in special packaging box)

Storage temperature :0 ℃ to 20 ℃

Service life: 2 years in air

Warranty: 12 months after delivery

Physical properties of

Weight: about 5 grams

Location requirements: None

Specifications:

Gas	concentration (PPM)	Output signal (equivalent to PPM H2)
Hydrogen sulfide	24	0
Sulfur dioxide	5	0
Nitric oxide	35	10
Nitrogen dioxide	5	0
Carbon monoxide	50	200
Ethylene	100	80
Hydrogen	10	0

4H2-1000 CLE-0613-400 Electrochemical Gas Hydrogen Sensor 0 To 1000 PPM 0
