Product Details:
|
| Product Model: | CLE-1012-401 | Range: | 0 To 100 PPM |
|---|---|---|---|
| Sensitivity: | 0.135 0.035 A/ PPM | Baseline: | (20 OC) < 0.4 A |
| Baseline Drift Is Equivalent To: | 0 To 2 PPM | Resolution: | 0.5 PPM |
| Highlight: | Electrochemical Gas Sensor 4NH3-100,Electrochemical Gas Sensor CLE-1012-401,Electrochemical Ammonia Sensor |
||
Product Description:

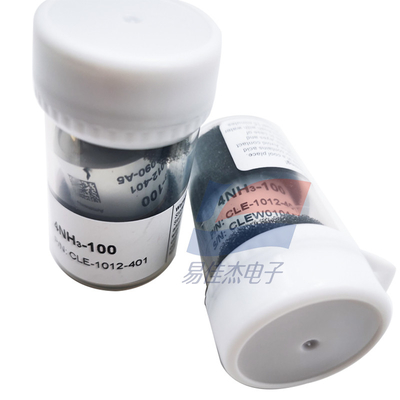

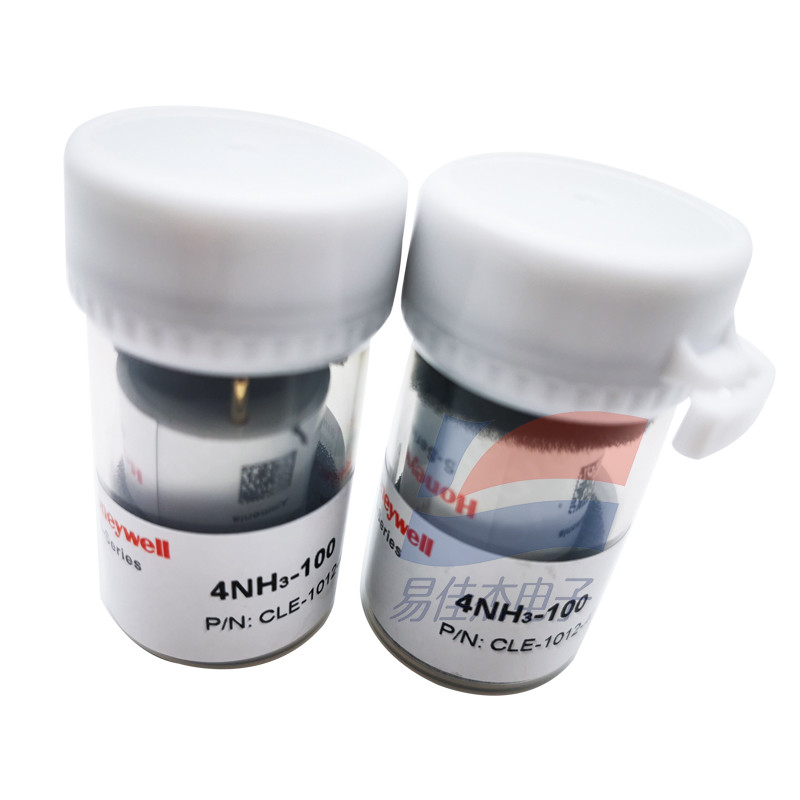

4NH3-100 CLE-1012-400 Ammonia Gas Sensor Electrochemical
Features:
The working conditions
Operating temperature -20 oC to 40 oC
Operating humidity 15 to 90%RH (non-condensing)
Working pressure 90 to 110 kPa
Bias 0 mV
Storage time 6 months (in special packaging box)
Storage temperature 0 oC to 20 oC
Service life ≥1 year in air
Warranty 12 months after delivery
Physical properties of
It weighs about 5 grams
Azimuth Requirement None
Specifications:
| gas | Concentration (PPM) | Output signal (equivalent to PPM NH3) |
|
Output signal (equivalent to PPM NH3) Carbon monoxide |
50 | 0 |
| Hydrogen sulfide | 25 | 65 |
| Carbon dioxide | 5000 | -1 |
| hydrogen |
1000
|
-1 |
| isobutylene | 100 | 0 |
