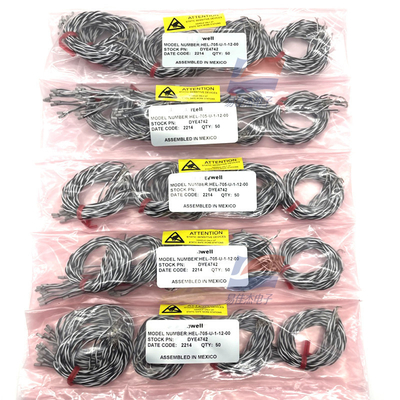

HEL-705-U-1-12-00 Platinum RTD Humidity Temperature Sensor Thin Film

Name: IC Temperature Transducer

Linear current output:: 1 μA/K

Wide temperature range:: −55°C to +150°C

2-terminal device:: voltage in/current out

relative humidity range: 0 to 100% RH

Accuracy: ± 3%RH

Operating temperature range: -40 ~ 110℃

response time: 5S

Voltage Supply: VDD 1.5 3.0 3.6 V

Current consumption (1): 0.02 0.14 µA

Power Dissipation: 2.7 µW

Communication: digital 2-wire interface, I²C protocol

relative humidity range: 0 to 100% RH

Accuracy: ± 3%RH

Operating temperature range: -40 ~ 110℃

response time: 5S

Digital I/O pins (DATA/SCK) to VDD: -0.3 to VDD+0.3 V

Input current on any pin: -10 to +10 mA

Voltage Supply: VDD 1.5 3.0 3.6 V

Current consumption (1): 300 450 500 μA
