7EF AB704-407 0-1000PPM Carbon Monoxide CO Gas Sensor 3 Electrode Electrochemical for Hydrogen Sulphide 15ppm

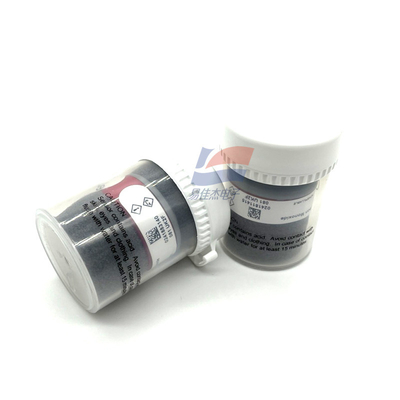

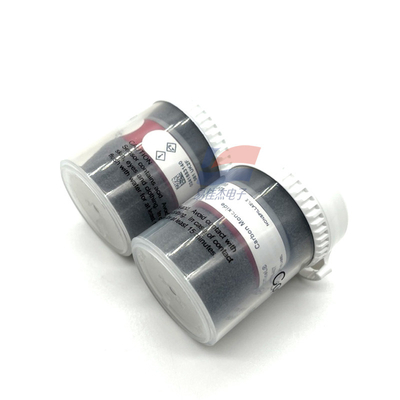

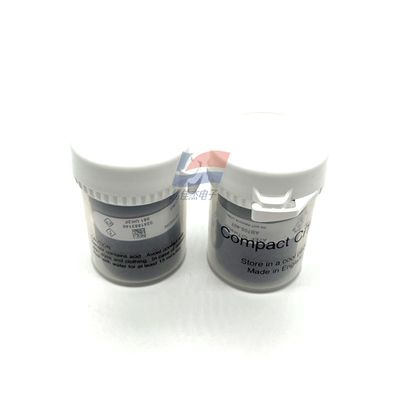

Large Image : 7EF AB704-407 0-1000PPM Carbon Monoxide CO Gas Sensor 3 Electrode Electrochemical for Hydrogen Sulphide 15ppm

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	7E/F 7EF AB704-407

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Canned
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

7EF AB704-407 0-1000PPM Carbon Monoxide CO Gas Sensor 3 Electrode Electrochemical for Hydrogen Sulphide 15ppm

Description

Hydrogen Sulphide::	15ppm	Sulphur Dioxide::	5ppm
Nitric Oxide:	35ppm	Nitrogen Dioxide::	5ppm
Chlorine:	1ppm	Measurement Range:	0-1000ppm CO
Highlight:	15ppm Carbon Monoxide CO Gas Sensor , 0-1000PPM CO Gas Sensor , 7EF AB704-407 CO Gas Sensor

Product Description:

7E/F 7EF AB704-407 0-1000PPM Carbon Monoxide CO Gas Sensor 3 Electrode Electrochemical

Features:

Measurement range :0~1000ppm

: 2000 PPM

Service life: 3 years in the air

Output signal: 0.1±0.02uA/PPM

Resolution: 0.5 PPM

Operating temperature: -20℃~+50℃

T90 Response time: ≤30S

Operating humidity: 15~90%RH

Zero drift: 9ppm

Long term drift: &LT; 5% signal loss/year

Repeatability: 1%

Output linear: Yes

Specifications:

Colour of Top	Dark Blue
Weight	17g
Position Sensitivity	None
Storage Life	Six months in CTL container
Recommended	0-20°C
Warranty Period	24 months from date of despatch

7EF AB704-407 0-1000PPM Carbon Monoxide CO Gas Sensor 3 Electrode Electrochemical for Hydrogen Sulphide 15ppm 0
