A5F+ AB511-W0X Carbon Monoxide 4 Electrode Electrochemical CO Gas Sensor

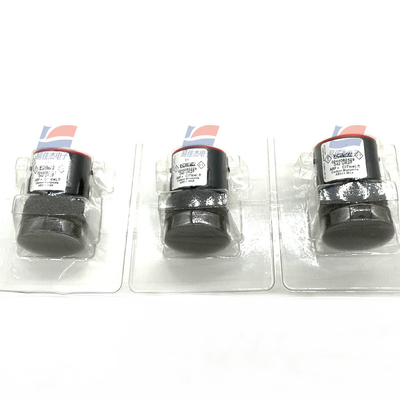

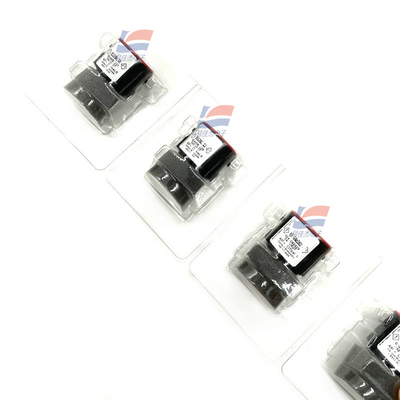

Large Image : A5F+ AB511-W0X Carbon Monoxide 4 Electrode Electrochemical CO Gas Sensor

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	A5F+

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	In tray
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

A5F+ AB511-W0X Carbon Monoxide 4 Electrode Electrochemical CO Gas Sensor

Description

Nominal Range:	0-10,000 Ppm	Maximum Overload:	20,000 Ppm
Internal Filter Life:	>275,000 Ppm Hours	Auxiliary Electrode:	To Compensate For Maximum
Highlight:	10000PPM Carbon Monoxide CO Sensor

Product Description:

A5F+ AB511-W0X Carbon Monoxide 4 Electrode Electrochemical CO Gas Sensor

Features:

CiTiceLs may exhibit a response to certain gases in a sample other than the target gas. The table below shows the typical response of A5F+ sensors to a number of common cross-interfering gases. The figures are expressed as a percentage of the primary sensitivity (i.e. nitric oxide = 100%).

Gas Response Gas Response

Hydrogen sulphide: 0 Hydrogen: <1 (see note)

Sulphur dioxide: 0 Hydrogen chloride: 5

Nitric oxide: 0 Nitrogen dioxide: 0

For details of other possible cross-interfering gases contact City Technology.

Specifications:

Output Signal	0.075± 0.025 μA/ppm
Resolution	1ppm
Temperature Range	-20°C to +50°C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	0.02% signal/mBar
T90 Response Time	<40 seconds

A5F+ AB511-W0X Carbon Monoxide 4 Electrode Electrochemical CO Gas Sensor 0
