SM353LT Magnetometer Hall Effect Sensor Current Transducer Nanopower Series ICs

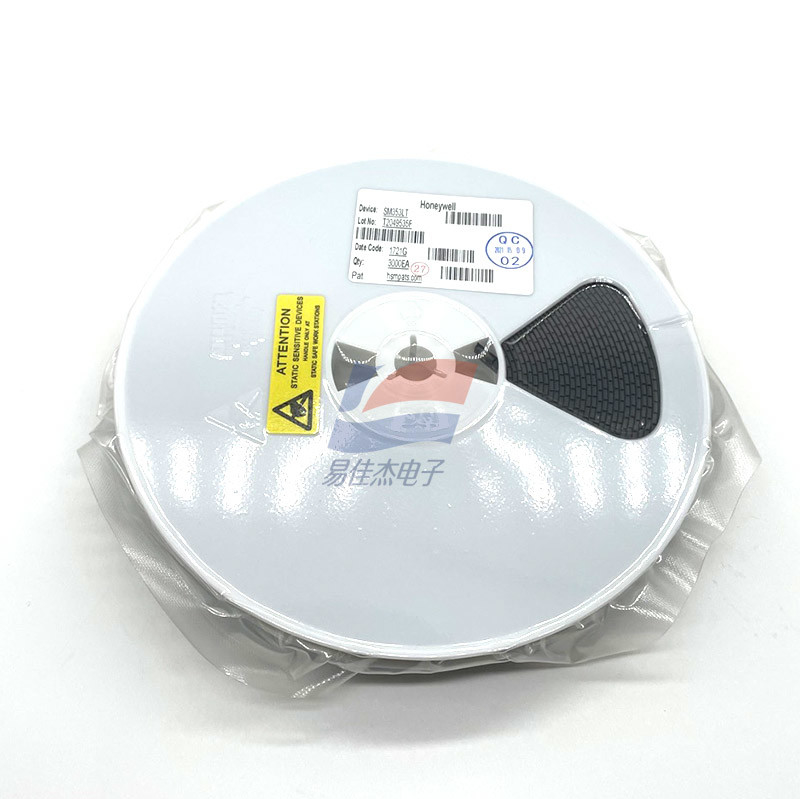

Large Image : SM353LT Magnetometer Hall Effect Sensor Current Transducer Nanopower Series ICs

Product Details:

Place of Origin:	USA
Model Number:	SM353LT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000pcs/Month

Contact Now

SM353LT Magnetometer Hall Effect Sensor Current Transducer Nanopower Series ICs

Description

Package / Case:

SOT-23-3

Package:

Cut Tape

Supply Voltage:

Min: 1.65 V

Unit Weight:

38 Mg

Highlight:

SM353LT Hall Effect Sensor

Magnetometer Hall Effect Sensor

Hall Effect Current Transducer Nanopower

SM353LT Magnetometer Hall Effect Sensors Nanopower Series ICs

Key Features

• High sensitivity: 7 Gauss typ., 11 Gauss max. (SM351LT);

14 G typ., 20 Gauss max. (SM353LT)

• Nanopower: Average current of 360 nA typ. (SM351LT) and

310 nA typ. (SM353LT)

• Supply voltage range: 1.65 Vdc to 5.5 Vdc; simplifies

design-in

• Omnipolar sensing: Activates with either pole from a

magnet

• Temperature range: -40 °C to 85 °C [-40 °F to 185 °F]

• Push-pull output: Does not require external pull-up resistor

• Non-chopper stabilized design

• RoHS-compliant materials: Meets Directive 2002/95/EC

• Package: SOT-23

Type	Magnetometer
Operating supply current	800 uA
Maximum output current	100 uA
Operating Point Min/Max	6 G, 20 G
Min/Max Release Point (Brp)	3 G, 10 G
Operating supply voltage	5 V
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C

Industrial

• Mobile equipment (i.e., handheld computing equipment,

scanners)

• Water, electric and gas utility meters

• Building access control; reed switch replacement for batteryoperated security systems

• Industrial smoke detectors

MEDICAL

• Exercise equipment

• Infusion pumps

• Drawer position sensing (e.g., medical cabinets)

• Hospital beds

SM353LT Magnetometer Hall Effect Sensor Current Transducer Nanopower Series ICs 0
