Product Details:
|
| Package / Case: | SOT-23-3 | Package: | Cut Tape |
|---|---|---|---|
| Output Voltage: | - 0.5 V To + 26 V | Unit Weight: | 63 Mg |
| Highlight: | SS360NT,Magnetic Field Strength Sensor 24 Vdc,4 Pin SMD Ammonia Leak Detection Sensor |
||

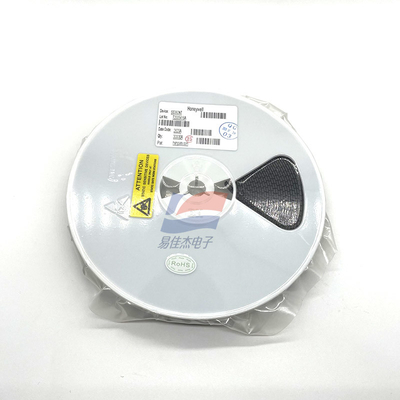

SS360NT Board Interface Hall Effect Magnetic Sensor Latching Digital
FEATURES
• Fastest response time in its class
• No-chopper-stabilization
• High sensitivity
• Latching magnetics
• Wide operating voltage range of 3 Vdc to 24 Vdc
• Built-in reverse voltage
• Durable design
• RoHS-compliant material meets Directive 2002/95
POTENTIAL APPLICATIONS
Industrial/commercial
• Brushless dc motor commutation
• Speed and RPM sensing in electric motors and fans
• Tachometer, counter pickup
• Robotics control
• Flow-rate sensing for appliances
Transportation
• Brushless dc motor commutation
• Electronic window lift, anti-pinch power window systems
• Vehicle convertible roof position
Medical
• Medical equipment using electric motors
| Type | Bipolar |
| Operating supply current | 3.5 mA |
| Maximum output current | 20 mA |
| Operating Point Min/Max | 5 G, 55 G |
| Min/Max Release Point (Brp) | - 55 G, - 5 G |
| Operating supply voltage | 24 V |
| Minimum operating temperature | - 40 C |
| Maximum operating temperature | + 150 C |
| Installation style | SMD/SMT |
