Product Details:
|
| Model: | HF 3E 10 SE | Range: | 0-10 PPM |
|---|---|---|---|
| Service Life: | > 18 Months | Response Time: | < 90s |
| Sensitivity: | 300±100nA/ PPM | ||
| Highlight: | HF Gas Sensor Module,HF Gas Sensor |
||
Product Description:

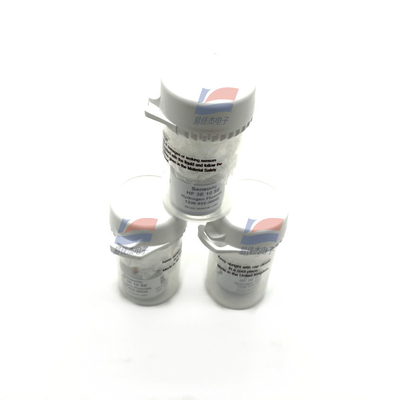

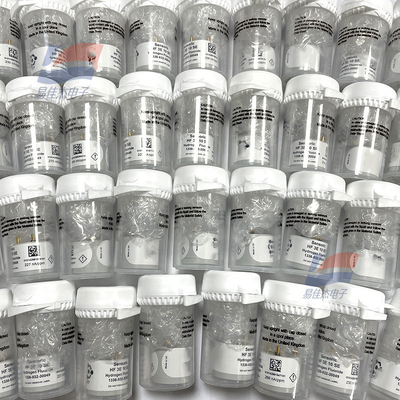

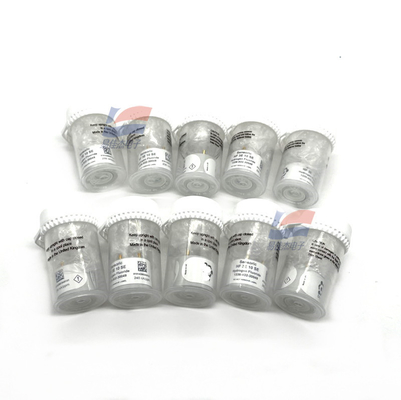

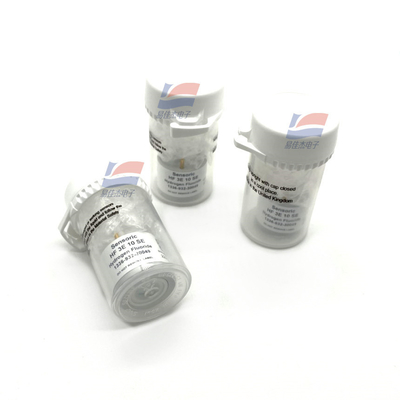

HF 3E10SE HF3E10SE 1336-932-30079 HF Gas Sensor Gas Detection Module Gas Detector
Features:
Working principle: electrochemistry, three electrodes
Measurement range: 0-10ppm
Filter: None
Sensitivity: 300±100nA/ PPM
Response time (T90) : < 90s
Baseline offset (clean air) : < ±30nA
Zero drift (20-40℃) : < 9ppm
Repeatability: < 10% full scale
Linearity: < 10% full scale
Typical applications: TLV; Leakage; Mobile/fixed *** monitoring
Service temperature: -20-40℃
Storage temperature: ℃
Pressure: ±10% atmospheric pressure
Humidity: 15-90%RH non-condensing
life
Long-term drift: < 10%/6 months
Use time: > 18 months
Storage time: 8 weeks, sealed
Specifications:
| Output | Current |
| Resolution | < 150ppb |
| Baseline offset | < ±30nA |
| Filter | None |
| Resolution | < 150ppb |
