Product Details:
|
| Object Gas: | Carbon Monoxide | Typical Detection Range Is: | 0-10000ppm |
|---|---|---|---|
| Output Current In Carbon Monoxide Is: | 0.7~1.4nA/ PPM | Baseline Offset (*1) & LT; Plus Or Minus: | 10 PPM |
| Operating Temperature Range: | (*2, *3) 0˚C To +50˚C | ||
| Highlight: | Civil Carbon Monoxide Sensor,CO Gas sensor |
||
Product Description:

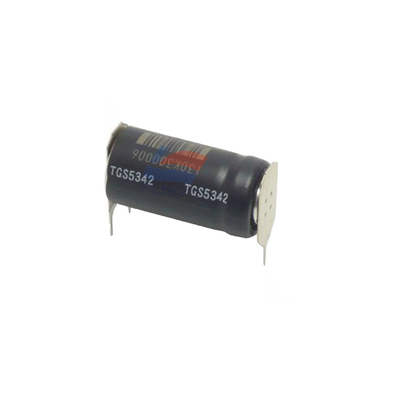

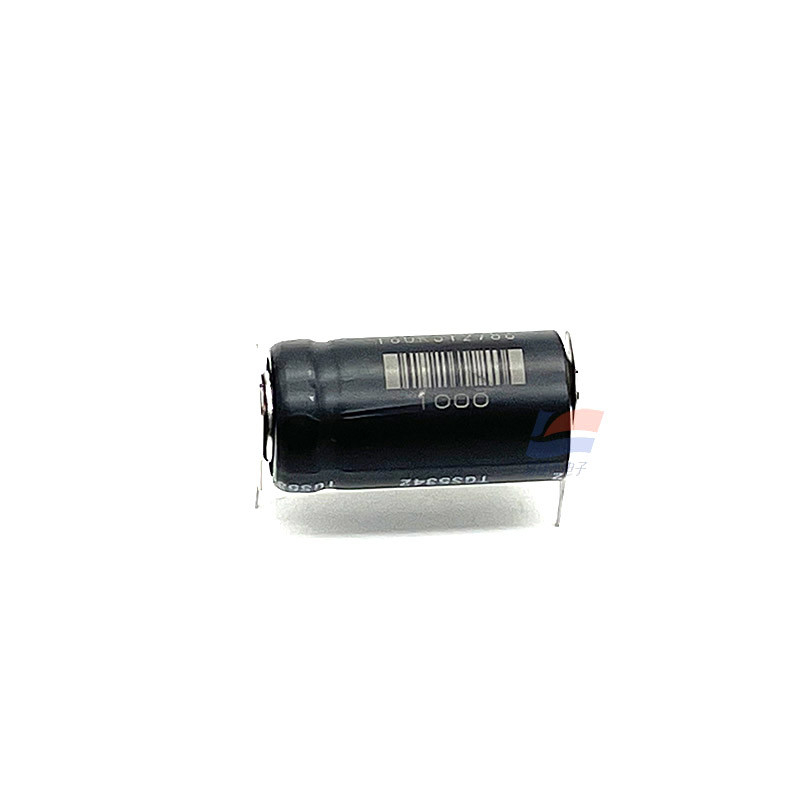

TGS5342-G03 Civil Carbon Monoxide Sensor (CO Gas sensor)
Features:
TGS5342 is a battery-operated electrochemical sensor developed by Figaro. Compared with existing electrochemical sensors, TGS5342 has the following advantages: the electrolyte is environmentally friendly; There is no danger of electrolyte leakage; Carbon monoxide can be detected at a concentration of up to 1% and can be operated at a wide temperature range (-5˚C to 55˚C). Very low sensitivity to interfering gases. This sensor has the characteristics of long service life, good long-term stability and high precision, and is one of the few ideal sensors for digital display. OEM customers will find it possible to print data for each sensor individually through each sensor's barcode, allowing users to avoid costly gas calibration procedures and also allowing individual sensors to be tracked. The length of TGS5342 is only 60% that of TGS5042.
Battery operated
Small volume
High selectivity/repeatability for carbon monoxide
It has high linear output characteristic for carbon monoxide
Easy to calibrate
Long service life
Obtain UL certification
Meets the requirements of UL2034, EN50291 and RoHS
Residential and commercial carbon monoxide detectors
Industrial carbon monoxide monitoring
Indoor parking lot through risk control system
Fire alarm system
Specifications:
| Humidity range | 5 ~ 99%RH (no condensation) |
| Response time (T90) | within 60 seconds |
| Storage conditions | (*2, *3) -5˚C to +55˚C |
| net weight about | 7g |
| standard test conditions were | 20±2˚C and 40±10%RH |
