Product Details:
|
| Detection Gas: | Carbon Monoxide | Typical Detection Range Is: | 0 ~ 10,000 PPM |
|---|---|---|---|
| Output Current In Carbon Monoxide Is: | 1.4~3.2nA/ PPM | Baseline Offset (*1) & LT; Plus Or Minus: | 10 PPM |
| Operating Temperature Range: | -10˚C To +50˚C (common) | ||
| Highlight: | CO Carbon Monoxide Sensor,Button Carbon Monoxide Sensor,TGS5141 Carbon Monoxide Sensor |
||
Product Description:

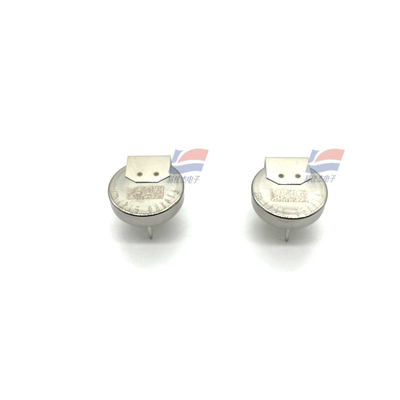

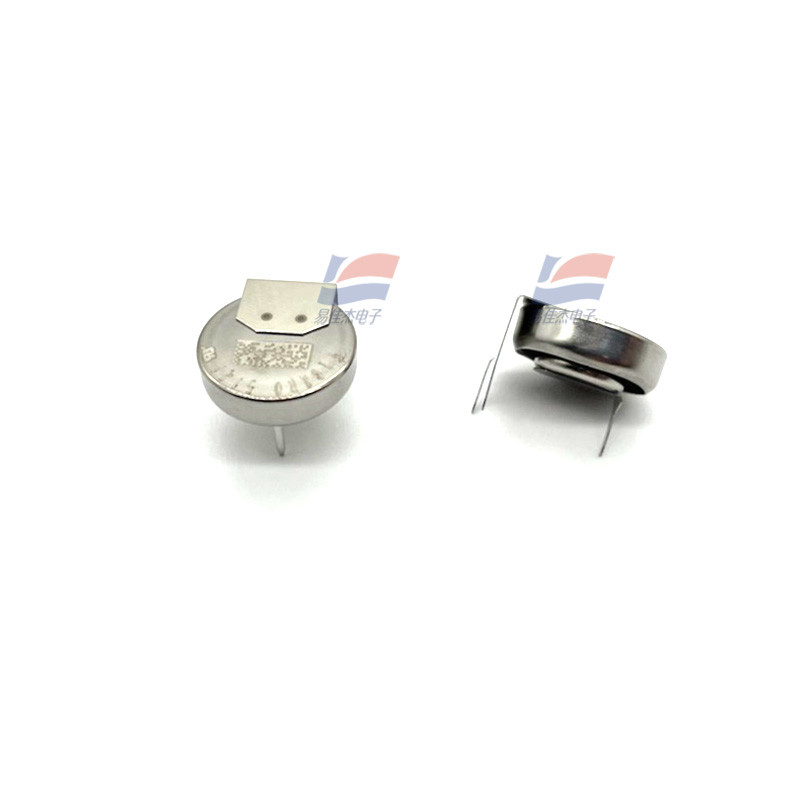

TGS5141 Button Carbon Monoxide Sensor (CO sensor)
Features:
The CO sensor is a battery-operated electrochemical sensor developed by Figaro. It uses a special electrode instead of the water storage device. Because of the removal of the water storage device used in the TGS5042, the TGS5141 is reduced to only 10% of the size of the TGS5042. Its ultra-small size makes it an ideal choice for portable carbon monoxide detectors, miniature residential carbon monoxide detectors, and multipurpose fire detectors. OEM customers will find it possible to print data for each sensor individually through each sensor's barcode, allowing users to avoid costly gas calibration procedures and also allowing individual sensors to be tracked.
subminiature
Battery operated
High selectivity/repeatability for carbon monoxide
It has high linear output characteristic for carbon monoxide
Easy to calibrate
Long service life
Obtain UL certification
Meets UL2034 and RoHS requirements
Specifications:
| Humidity range | 5 ~ 99%RH (no condensation) |
| Response time (T90) | 60s |
| Storage conditions | -10˚C to +50˚C |
| net weight about | 2.5g |
| standard test conditions were | 20±2˚C and 40±10%RH |
