Product Details:
|
| Detection Principle: | Oxide | Semiconductor Type Package: | TO-5 Metal |
|---|---|---|---|
| Target Gas: | Methane, Natural Gas | Detection Range: | 500-10000ppm |
| Highlight: | Methane gas sensor,TGS2619 Methane gas sensor,TGS2619 gas sensor |
||
Product Description:

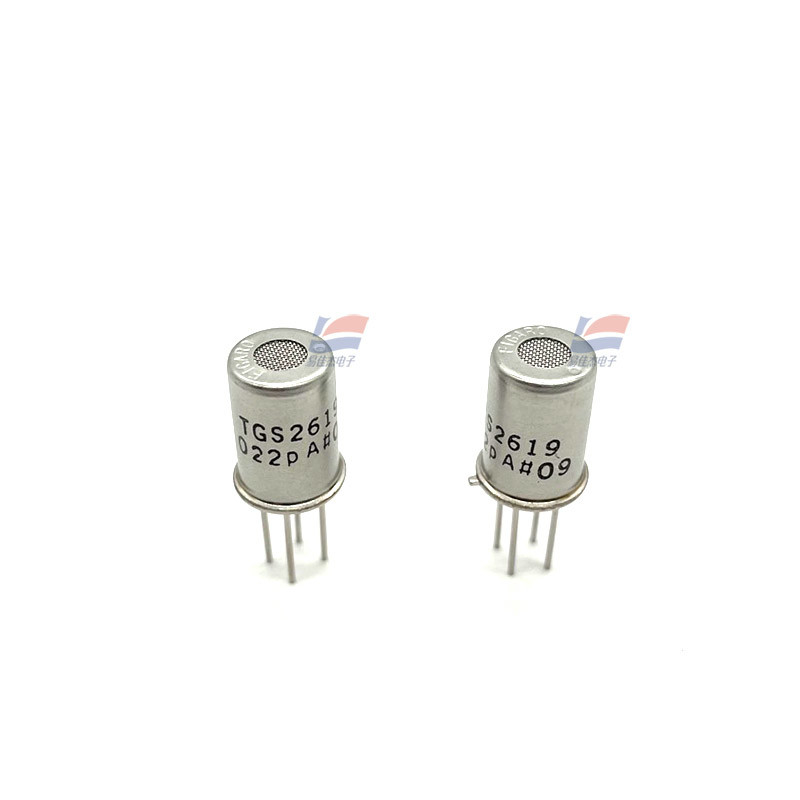

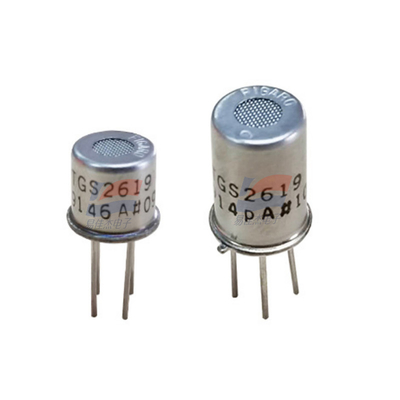

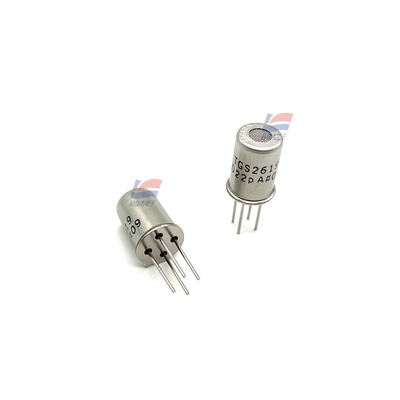

TGS2619 Methane gas sensor
Features:
Figaro Methane Sensor Gas sensor TGS2619
TGS2619 is highly sensitive to methane gas and is an ideal sensor for domestic gas leakage alarms because of its low sensitivity to volatile alcohol (a common interfering gas in residential environments). Due TO the small volume of the sensitizer, the heater current of TGS2619 is only 56mA, and the detection part of the sensor is housed in a standard to-5 metal package.
Tgs2619-c00 is not only small, but also very responsive. Is the best choice of gas leak detector.
Tgs2619-e00 is equipped with a filter cover that can eliminate the influence of alcohol and other interfering gases, and has a highly selective sensitivity to methane gas. Especially suitable for the complex atmosphere, strict requirements of the home environment to detect the appliance, is the most ideal sensor for household gas leakage detector.
Low power consumption
High sensitivity to methane gas
Long service life and low cost
Simple application circuit
Domestic gas leak alarm
Portable gas detector
Perform leak detection on gas installations
Specifications:
| Test gas condition | Methane in air at 20±C˚2 |
| Heater power consumption | 280nW±25nW |
| Preheating time | 7 days |
| Current of heater | 56±5ma |
