NAP-55A Combustible Gas High Detection Accuracy Catalytic Flammable Low Cost

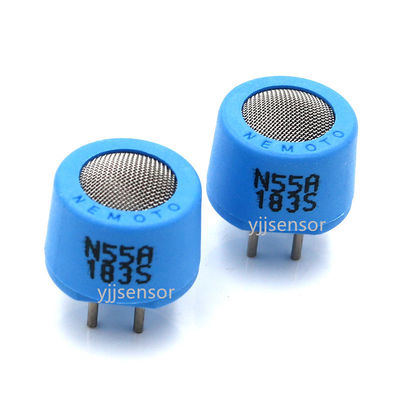

Large Image : NAP-55A Combustible Gas High Detection Accuracy Catalytic Flammable Low Cost

Product Details:

Place of Origin:	Japan
Brand Name:	Nemoto
Model Number:	NAP-55A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	In tray
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

NAP-55A Combustible Gas High Detection Accuracy Catalytic Flammable Low Cost

Description

Power Supply Voltage:

2.5 + / - 0.25 V DC

Current 2V Power Supply:

DC 150 ~ 170mA

Environment Temperature:

Operations - 10 ~ 50 ° C

Environmental Humidity:

Operation & Lt; 95% RH

Highlight:

Low Power Gas Sensors

Leak Testing Gas Sensors

Product Description:

NAP-55A Combustible Gas High Detection Accuracy Catalytic Flammable Low Cost

Features:

The NAP-55A Gas Sensor is a low–cost Catalytic Flammable Gas Sensor designed for the detection and measurement of any Flammable Gas in the range 0-50% LEL. Developed primarily for use in Residential Natural gas and LPG Gas Detectors, the NAP-55A has also been found to be useful in a wide variety of applications where reliable detection of flammable gas leaks and other gas hazards is required at low cost.

NAP-55A is a small and low power sensor.

Nap-55a is intended for gas detection and leak testing.

Nap-55a has half the weight and half the power consumption of other products, making it a much lighter detector.

The following are the basic parameters, but it is recommended for civilian use.

Sensor test circuit and NAP-66A like.

Specifications:

Gas	detection range	numerical
Methane	CH4	0.05 ~ 5%
Propane	C3H8	0.03 ~ 2.2%
Different silane	Iso - C4H10	0.03 ~ 1.8%
Hydrogen gas	H2	0.05 ~ 4% (0.05 ~ 1.5%)
Hydrocarbon	CnH2n+2	+2 1~100% LEL(1~50% LEL)

NAP-55A Combustible Gas High Detection Accuracy Catalytic Flammable Low Cost 0
