Product Details:
|
| Power Supply Voltage: | 2.5 + / - 0.25 V DC | Current 2V Power Supply: | DC 150 ~ 170mA |
|---|---|---|---|
| Environment Temperature: | Operations - 10 ~ 50 ° C | Environmental Humidity: | Operation & Lt; 95% RH |
| Storage & Lt: | 99% RH(non-condensing) | ||
| Highlight: | Low Power Gas Sensors,Leak Testing Gas Sensors |
||
Product Description:

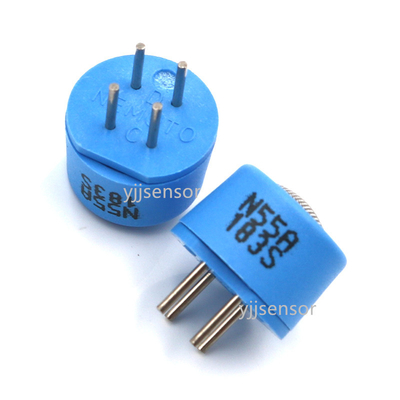

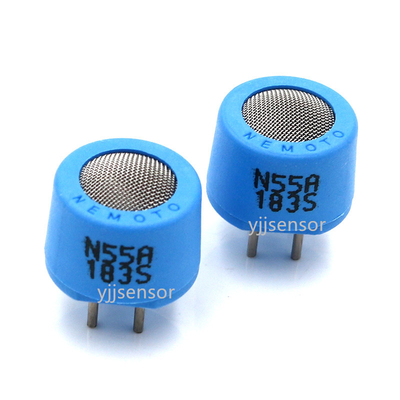

NAP-55A Small Low Power Gas Sensors Are Used For Gas Detection And Leak Testing
Features:
NAP-55A is a small and low power sensor.
Nap-55a is intended for gas detection and leak testing.
Nap-55a has half the weight and half the power consumption of other products, making it a much lighter detector.
The following are the basic parameters, but it is recommended for civilian use.
Sensor test circuit and NAP-66A like.
Specifications:
| Gas | detection range | numerical |
| Methane | CH4 | 0.05 ~ 5% |
| Propane | C3H8 | 0.03 ~ 2.2% |
| Different silane | Iso - C4H10 | 0.03 ~ 1.8% |
| Hydrogen gas | H2 | 0.05 ~ 4% (0.05 ~ 1.5%) |
| Hydrocarbon | CnH2n+2 | +2 1~100% LEL(1~50% LEL) |
