HFP-0401 Composite Portable Multi Gas Monitor Alarm Electrochemical Gas Monitor

Name: HFP-0401 Composite Portable Multi Gas Monitor Alarm Electrochemical Gas Monitor
Brand: ShenzhenYijiajie Electronic Co., Ltd.
SKU: HFP-0401
Price: 18.00 USD
Availability: InStock

All Products

Oxygen Gas Sensor
(146)

Electrochemical Gas Sensor
(14)

Gas Sensor
(936)

Carbon Dioxide Sensor
(16)

Electronic Gas Analyzer
(52)

Medical Air Flow Sensor
(103)

Humidity Temperature Sensor
(55)

Electronic Pressure Sensor
(285)

Hall Effect Sensor
(48)

Current Sensor
(19)

Infrared Photoelectric Sensor
(156)

UV Photodiode Sensor
(70)

Other Sensors
(101)

Gas Sensor Module
(7)

Certification

I'm Online Chat Now

HFP-0401 Composite Portable Multi Gas Monitor Alarm Electrochemical Gas Monitor

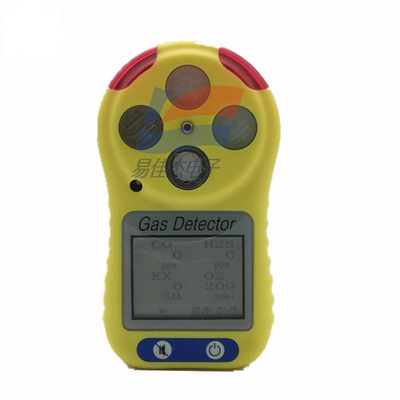

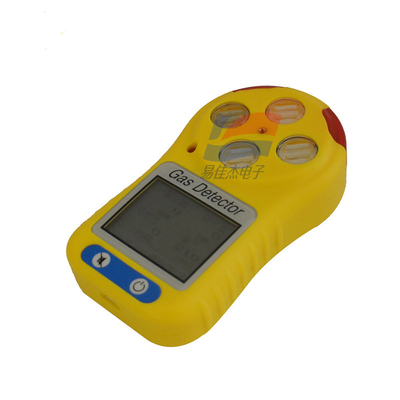

Large Image : HFP-0401 Composite Portable Multi Gas Monitor Alarm Electrochemical Gas Monitor

Product Details:

Model Number:	HFP-0401

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/Month

Contact Now

HFP-0401 Composite Portable Multi Gas Monitor Alarm Electrochemical Gas Monitor

Description

Dimensions:

121mm×66mm×30mm

Weight:

151g

Sensor Type:

Electrochemical

Highlight:

HFP-0401 Portable Multi Gas Monitor

Composite Portable Multi Gas Monitor

Alarm Electrochemical Gas Monitor

HFP-0401 Composite Gas Detector Portable Alarm

The standard configuration of the composite gas detector HFP-0401 is oxygen (O2), combustible gas (EX), toxic and harmful gases (CO, H2S) (note: the gas types can be arbitrarily matched according to requirements)

Portable composite gas detection alarm can detect four toxic gases at the same time, small in size, safe and power-saving

Specification Sheet:

Standard configuration	oxygen (O2), combustible gas (EX), toxic and harmful gases (CO, H2S)
Response time	oxygen≤30s; carbon monoxide ≤40s; combustible gas ≤20s; hydrogen sulfide ≤30s (others omitted)
Display mode	high-brightness white backlight
Alarm mode	sound alarm above 90dB (10cm away from the instrument)
Working mode	continuous work, four-in-one standard configuration for about 12 hours, four types of poison gas for about 7 days
Temperature range	-20℃～50℃
Humidity range	15% ~ 95% (RH) without condensation
Power supply mode	lithium battery power supply
Charging time	3-5 hours
Charging voltage	DC5V (DC)

HFP-0401 Composite Portable Multi Gas Monitor Alarm Electrochemical Gas Monitor 0
