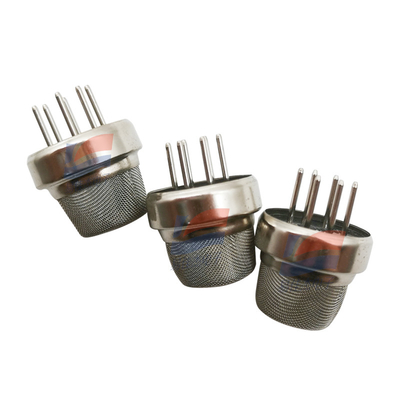

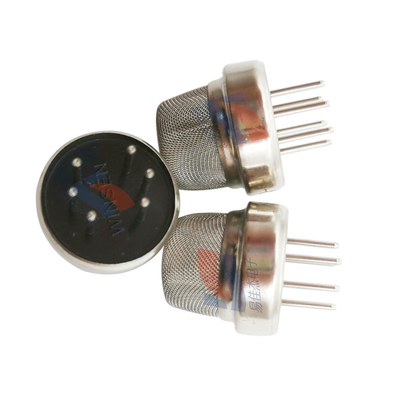

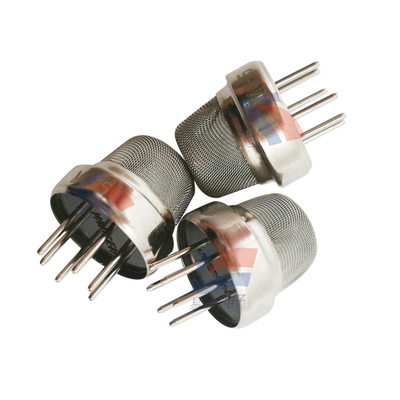

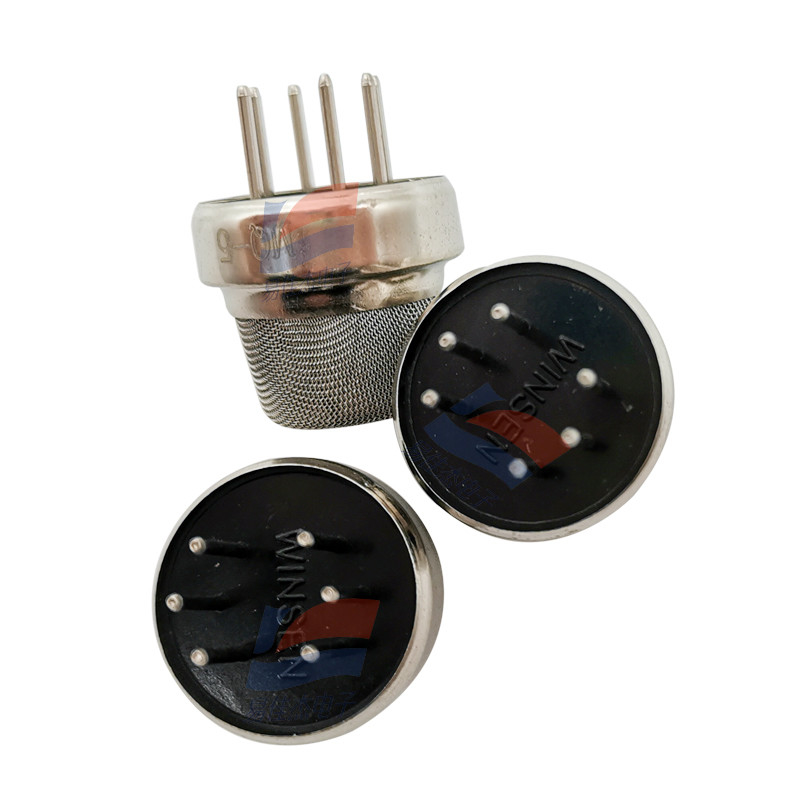

MQ-5 Flammable Gas Sensor Semiconductor Lower Conductivity High Sensitivity

MQ-5 Flammable Gas Sensor  Semiconductor Lower Conductivity High Sensitivity
MQ-5 Flammable Gas Sensor  Semiconductor Lower Conductivity High Sensitivity MQ-5 Flammable Gas Sensor  Semiconductor Lower Conductivity High Sensitivity MQ-5 Flammable Gas Sensor  Semiconductor Lower Conductivity High Sensitivity MQ-5 Flammable Gas Sensor  Semiconductor Lower Conductivity High Sensitivity

Large Image :  MQ-5 Flammable Gas Sensor Semiconductor Lower Conductivity High Sensitivity

Product Details:
Place of Origin: China
Brand Name: Winsen
Model Number: MQ-5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Box
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Month

MQ-5 Flammable Gas Sensor Semiconductor Lower Conductivity High Sensitivity

Description
Product Model: MQ-5 Product Type: Semiconductor Gas Sensor
Standard Package: Bakelite, Metal Cover Detection Gas: LPG, Methane
Detection Concentration: 300~10000ppm (methane, Propane) Preheat Time: Not Less Than 48 Hours
Highlight:

Semiconductor Gas Sensor

,

Lower Conductivity Gas Sensor

,

High Sensitivity Gas Sensor

MQ-5 Flammable Gas Sensor Semiconductor Lower Conductivity High Sensitivity



The gas sensing material used in the MQ-5 combustible gas sensor is tin dioxide (SnO2), which has a low conductivity in clean air. When there is combustible gas in the environment where the gas sensor is located, the conductivity of the combustible gas sensor increases with the increase of the concentration of combustible gas in the air. The change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.



The MQ-5 combustible gas sensor has high sensitivity to butane, propane and methane, and can take into account both methane and propane. This gas sensor can detect a variety of flammable gases, especially natural gas, and is a low-cost sensor suitable for a variety of applications.



Output Voltage  2.5v~4.0V
Concentration Slope  S0.6
Standard test circuit  Vc:5.0V±0.1V VH:5.0V±O.1V
Lifespan  10 years



MQ-5 Flammable Gas Sensor  Semiconductor Lower Conductivity High Sensitivity 0
