Product Details:
|
| Detection Gas: | Chlorine (Cl2) | Range: | 0~10ppm |
|---|---|---|---|
| Maximum Measurement Limit: | 100ppm | Sensitivity: | (0.4-0.8)uA/ppm |
| Highlight: | Electrochemistry Chlorine Gas Sensor,0~10PPM Chlorine Gas Sensor |
||

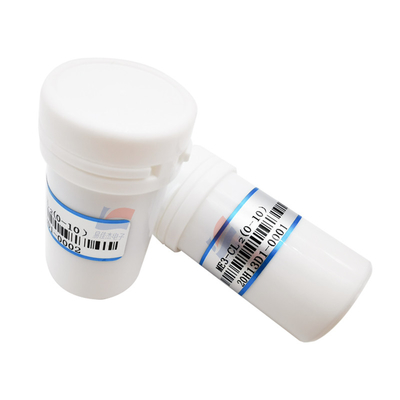

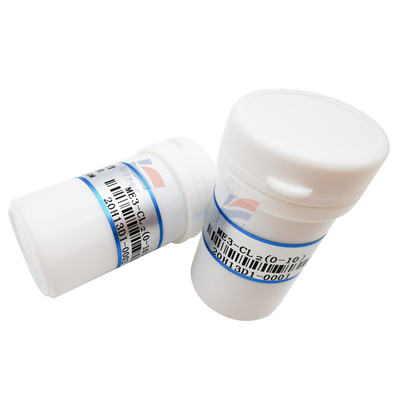

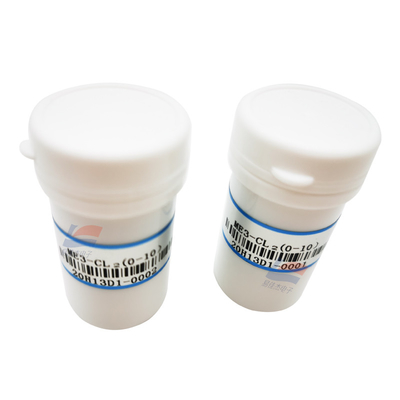

ME3-CL2 Chlorine Gas Sensor Electrochemistry 0~10PPM Industrial And Environmental Fields
ME3-CL2 electrochemical gas sensor is based on the principle of electrochemistry, using the gas to be tested to have corresponding redox reactions on the working electrode and counter electrode of the sensor and release the charge, and form a current through the external circuit, the current size is proportional to the gas concentration, thus Realize quantitative measurement of target gas.
Datasheet:
| Response time (T90) | <60 S |
| Bias | 0mV |
| Load resistance (recommended) | 10 Ω |
| Repeatability | ＜2﹪Output value |
| Stability (/month) | ＜2﹪ |
| Output Linearity | Linearity |
| Zero drift (-20℃～+40℃) | ≤0.2ppm |
| Operating temperature range | ﹣20℃～+50℃ |
| Humidity range | 15﹪~90﹪RH without condensation |
| Working pressure range | Standard atmospheric pressure ±10% |
| Service life | 2 years |
