ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM

ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM
ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM

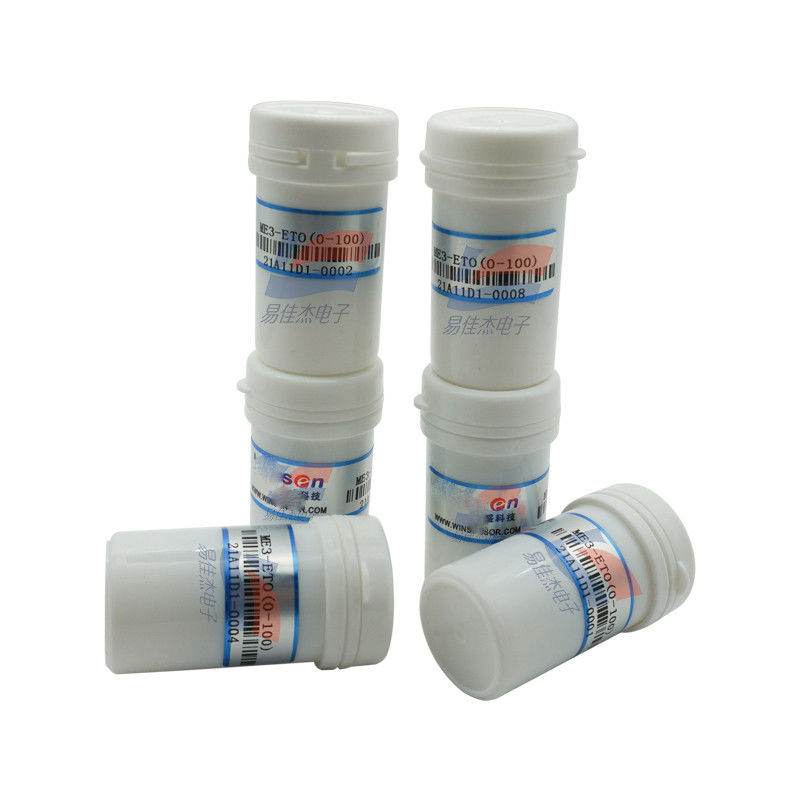

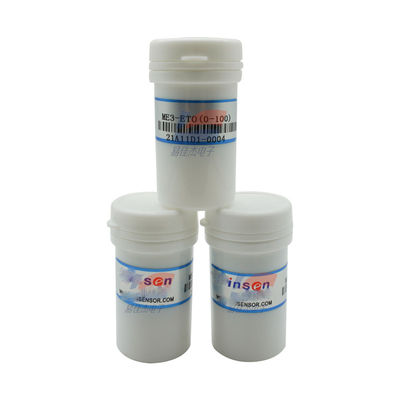

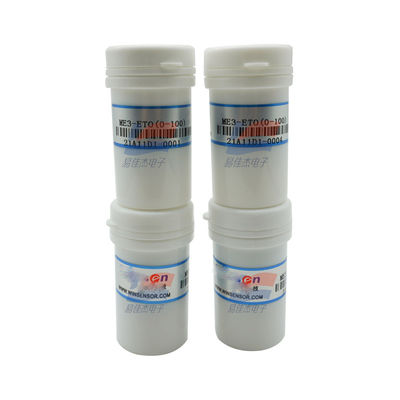

Large Image :  ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM

Product Details:
Place of Origin: China
Brand Name: Winsen
Model Number: ME3-ETO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Box
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Month
Contact Now

ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM

Description
Detection Gas: Ethylene Oxide (ETO) Range: 0~20ppm
Maximum Measurement Limit: 100ppm Sensitivity: (1.8±0.3)uA/ppm
Highlight:

Constant Potential Electrolytic Sensor

ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM

                                                                                                                                                                                                                                            ME3-ETO electrochemical gas sensor is a constant-potential electrolytic sensor. The corresponding redox reaction of ethylene oxide and oxygen occurs on the working electrode and the counter electrode, and the electric charge is released to form a current. The magnitude of the generated current is related to the concentration of ethylene oxide. It is proportional to the size of the test current to determine the level of ethylene oxide concentration.



Applications:
Widely used in industrial and environmental protectionl fields



ME3-ETO Ethylene Oxide Gas Sensor Constant Potential Electrolytic Sensor 20PPM 0

Datasheet:

Response time (T90) ≤120S
Bias 300mV
Load resistance (recommended) 10 Ω
Repeatability ＜2﹪Output value
Stability (/month) ＜2﹪
Output Linearity Linearity
Zero drift (-20℃～+40℃) 4ppm
Operating temperature range ﹣20℃～+50℃
Humidity range 15﹪~90﹪RH without condensation
Working pressure range Standard atmospheric pressure ±10%
Service life 2 years
