Product Details:
|
| Detection Gas: | Ethylene Oxide (ETO) | Range: | 0~20ppm |
|---|---|---|---|
| Maximum Measurement Limit: | 100ppm | Sensitivity: | (1.8±0.3)uA/ppm |
| Highlight: | Constant Potential Electrolytic Sensor |
||

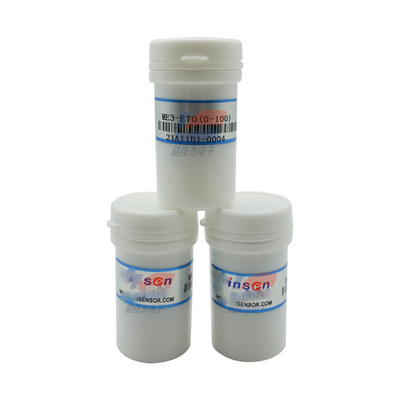

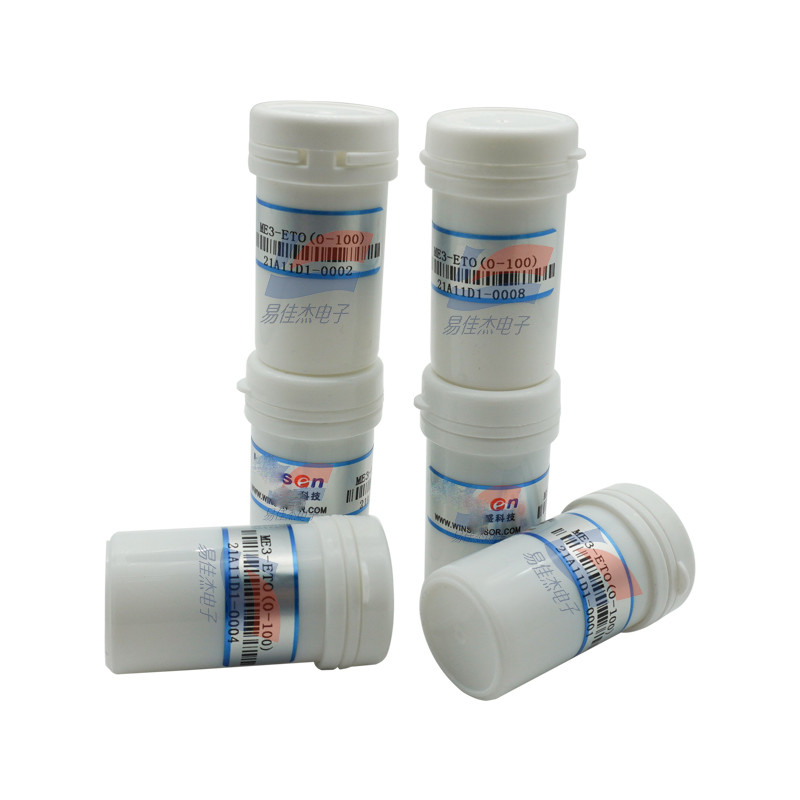

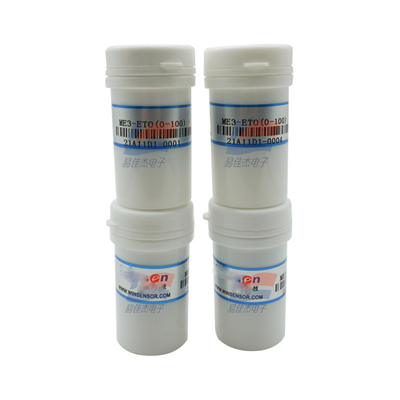

ME3-ETO Ethylene Oxide Sensor Constant Potential Electrolytic Sensor
ME3-ETO electrochemical gas sensor is a constant-potential electrolytic sensor. The corresponding redox reaction of ethylene oxide and oxygen occurs on the working electrode and the counter electrode, and the electric charge is released to form a current. The magnitude of the generated current is related to the concentration of ethylene oxide. It is proportional to the size of the test current to determine the level of ethylene oxide concentration.
Datasheet:
| Response time (T90) | ≤120S |
| Bias | 300mV |
| Load resistance | (recommended) 10 Ω |
| Repeatability | ＜2﹪Output value |
| Stability (/month) | ＜2﹪ |
| Output Linearity | Linearity |
| Zero drift | (-20℃～+40℃) 4ppm |
| Operating temperature range | ﹣20℃～+50℃ |
| Humidity range | 15﹪~90﹪RH without condensation |
| Working pressure range | Standard atmospheric pressure ±10% |
| Service life | 2 years |
