Product Details:
|
| Product Model: | ZE14-O3 | Detection Gas: | Ozone |
|---|---|---|---|
| Interfering Gases: | Alcohol And Other Gases | Output Data: | UART Output (3.3V Level) |
| Highlight: | No Poisoning Ozone Gas Sensors |
||

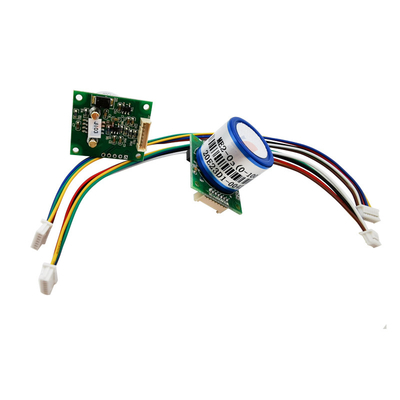

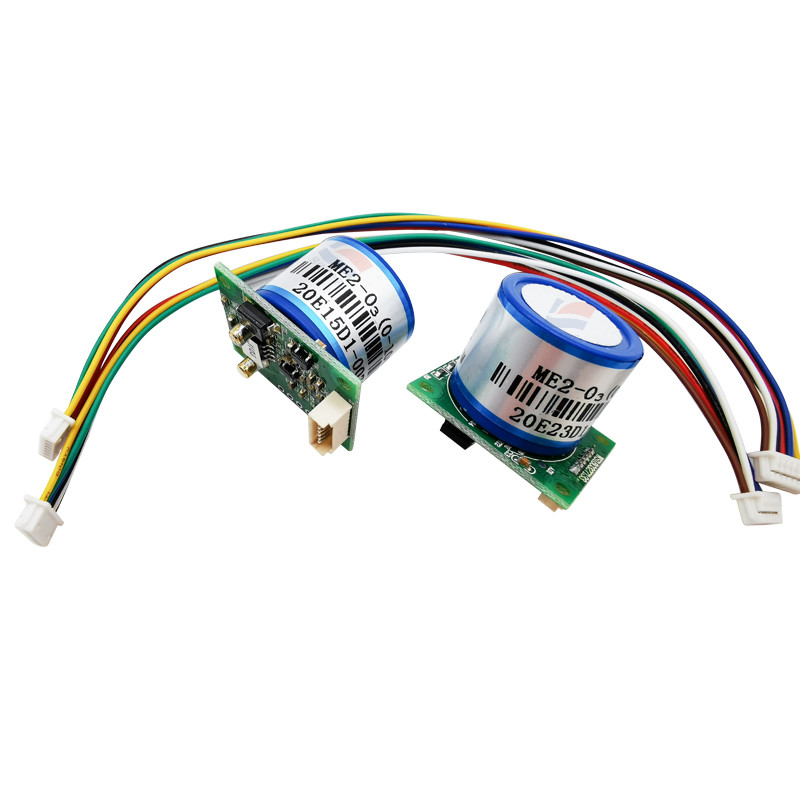

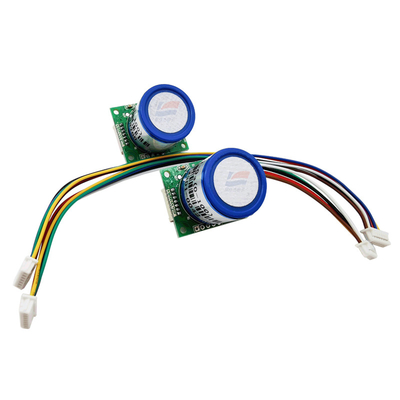

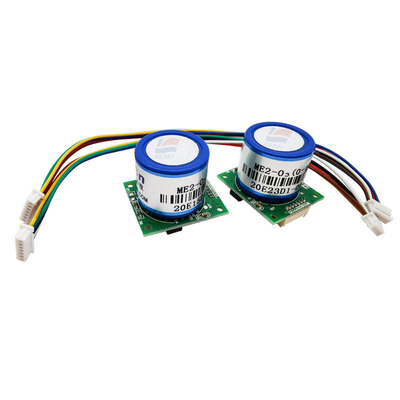

ZE14-O3 Ozone Gas Sensors Anti-Water Vapor Interference No Poisoning
ZE14-O3 electrochemical ozone module is a general-purpose, miniaturized module. The electrochemical principle is used to detect O3 in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; at the same time, it has digital output and analog voltage output, which is convenient to use. ZE14-O3 is a general-purpose gas module designed and manufactured by closely combining mature electrochemical detection technology with sophisticated circuit design.
Datasheet:
| Working voltage | 5±0.5V DC |
| Warm-up time | 30 seconds |
| Response time | ≤30 seconds |
| Recovery time | ≤30 seconds |
| Range | 0～100ppm |
| Resolution | 0.1ppm |
| Working temperature | -10℃～65℃ |
| Working humidity | 15%RH-90%RH (non-condensing) |
| Storage temperature | -20℃～65℃ |
| Service life | 3-5 years (in air) |
