ZE14-O3 Ozone Gas Sensors Module Anti-Water Vapor Interference No Poisoning

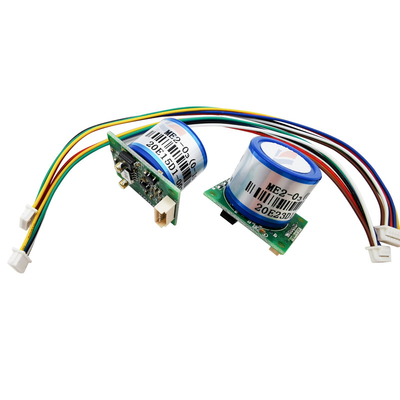

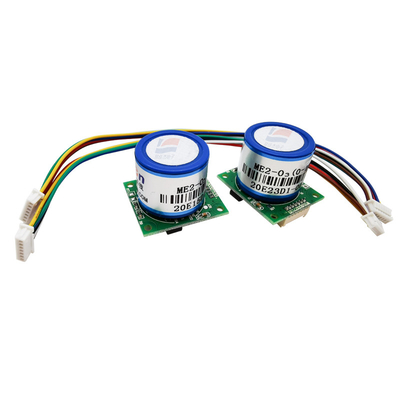

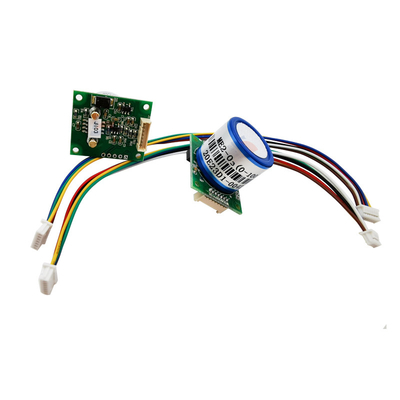

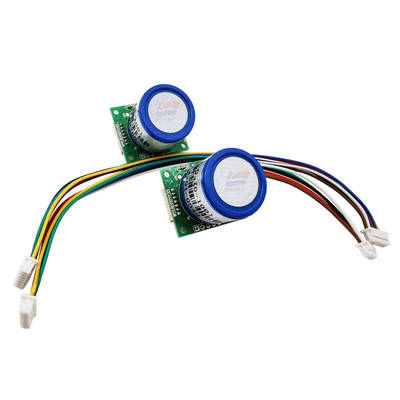

Large Image : ZE14-O3 Ozone Gas Sensors Module Anti-Water Vapor Interference No Poisoning

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	ZE14-O3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

ZE14-O3 Ozone Gas Sensors Module Anti-Water Vapor Interference No Poisoning

Description

Product Model:	ZE14-O3	Detection Gas:	Ozone
Interfering Gases:	Alcohol And Other Gases	Output Data:	UART Output (3.3V Level)
Highlight:	No Poisoning Ozone Gas Sensors

ZE14-O3 Ozone Gas Sensors Module Anti-Water Vapor Interference No Poisoning

ZE14-O3 electrochemical ozone module is a general-purpose, miniaturized module. The electrochemical principle is used to detect O3 in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; at the same time, it has digital output and analog voltage output, which is convenient to use. ZE14-O3 is a general-purpose gas module designed and manufactured by closely combining mature electrochemical detection technology with sophisticated circuit design.

Datasheet:

Working voltage	5±0.5V DC
Warm-up time	30 seconds
Response time	≤30 seconds
Recovery time	≤30 seconds
Range	0～100ppm
Resolution	0.1ppm
Working temperature	-10℃～65℃
Working humidity	15%RH-90%RH (non-condensing)
Storage temperature	-20℃～65℃
Service life	3-5 years (in air)

ZE14-O3 Ozone Gas Sensors Module Anti-Water Vapor Interference No Poisoning 0
