Product Details:
|
| Product Model: | ZE25-O3 | Detection Gas: | O3 |
|---|---|---|---|
| Interfering Gas: | NO2, CL2 And Other Gases | Output Data: | DAC (0.4～2V Voltage Signal Corresponding |
| Concentration: | 0～10PPM) | UART Output: | (3V Level) |
| Highlight: | Electrochemical Ozone Sensors,Electrochemical Ozone Module |
||

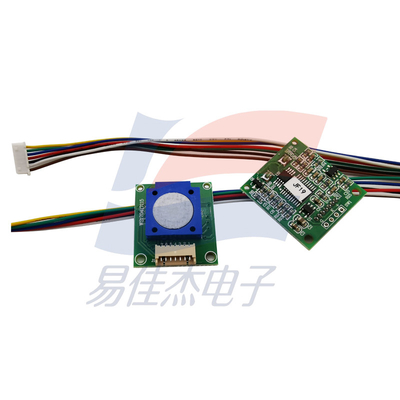

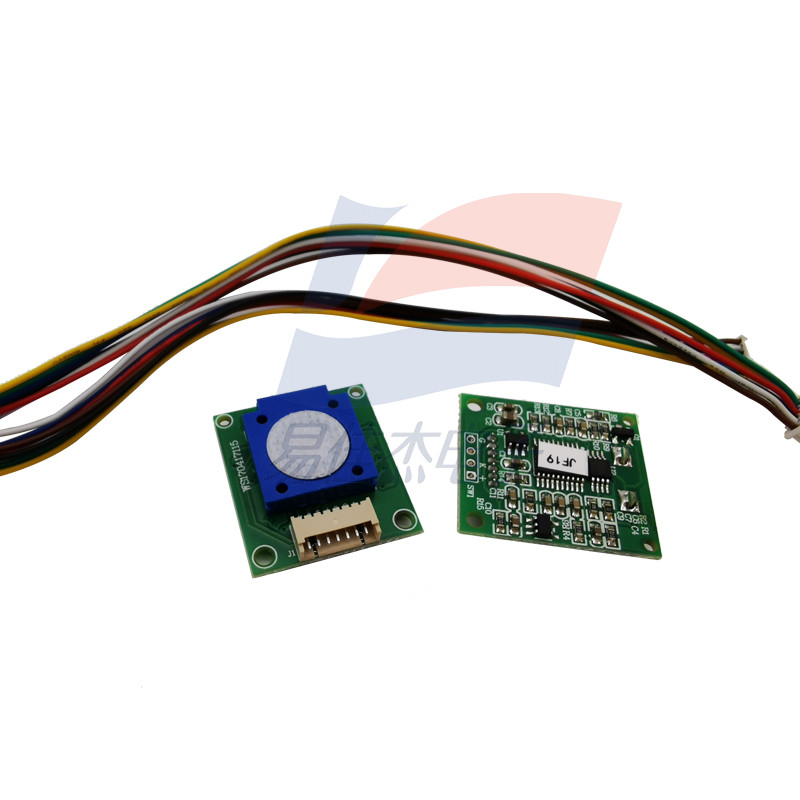

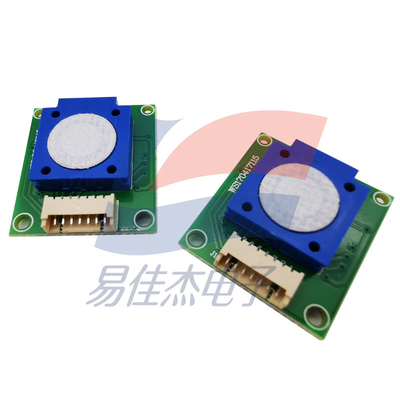

ZE25-O3 Gas Ozone Sensors Electrochemical Ozone Module Miniaturization
ZE25-O3 electrochemical ozone module is a general-purpose, miniaturized module. Using the electrochemical principle to detect ozone gas in the air, it has good selectivity and stability. Built-in temperature sensor for temperature compensation; digital output and analog voltage output at the same time, easy to use. ZE25-O3 is a general-purpose gas module designed and manufactured by closely combining mature electrochemical detection technology with sophisticated circuit design.
Datasheet:
| Working voltage | 3.7V~5.5V (no voltage reverse connection protection) |
| Warm-up time | ≤3 minutes |
| Response time | ≤90 seconds |
| Recovery time | ≤90 seconds |
| Range | 0~10ppm |
| Resolution | 0.01 ppm |
| Working temperature | -10℃～55℃ |
| Working humidity | 15%RH-90%RH (non-condensing) |
| Storage temperature | -20℃～55℃ |
| Service life | 2 years (in air) |
