ZE27-O3 Electrochemical Ozone Detection Module High Sensitivity

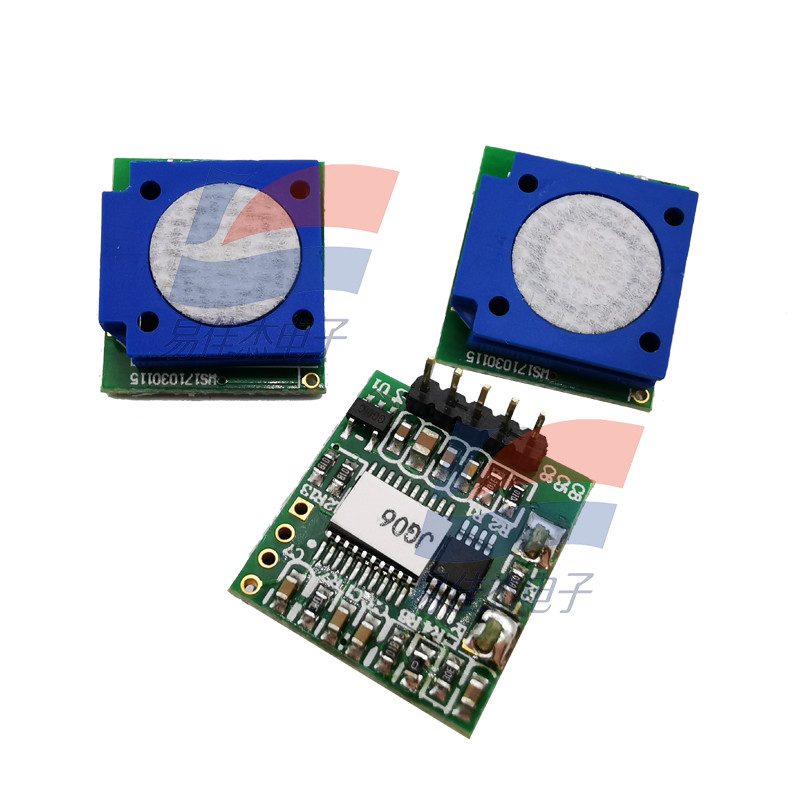

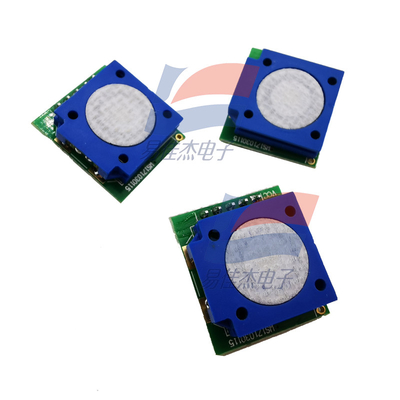

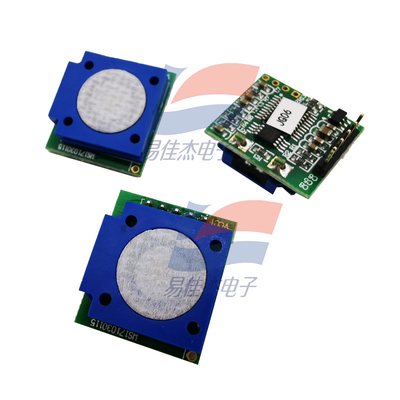

Large Image : ZE27-O3 Electrochemical Ozone Detection Module High Sensitivity

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	ZE27-O3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

ZE27-O3 Electrochemical Ozone Detection Module High Sensitivity

Description

Target Gas:	O3	Interference Gas:	NO2, CL2, Etc.
Output Data:	UART Output (3V-TTL)	Working Voltage:	3.7V～5.5V
Highlight:	Electrochemistry Gas Sensors

ZE27-O3 Electrochemical Ozone Detection Module High Sensitivity

ZE27-O3 electrochemical ozone module is a general-purpose, miniaturized module. The use of electrochemical principle to detect ozone gas in the air has good selectivity and stability. Built-in temperature sensor for temperature compensation; with digital output, easy to use. ZE27-O3 is a general-purpose gas module designed and manufactured by closely combining mature electrochemical detection technology with sophisticated circuit design.

Datasheet:

Working voltage	3.7V ~ 5.5V (no voltage reverse polarity protection)
Warm-up time	≤3 minutes
Response time	≤90 seconds
Recovery time	≤90 seconds
Range	0～10ppm
Working temperature	-20℃～50℃
Resolution	0.01ppm
Working humidity	15%RH-90%RH (non-condensing)
Storage temperature	-20℃～50℃
Service life	2 years (in air)

ZE27-O3 Electrochemical Ozone Detection Module High Sensitivity 0
