Product Details:
|
| Product Model: | ZE27-O3 | Detection Gas: | Ozone O3 |
|---|---|---|---|
| Interfering Gas: | NO2, CL2 And Other Gases | ||
| Highlight: | Electrochemistry Gas Sensors |
||

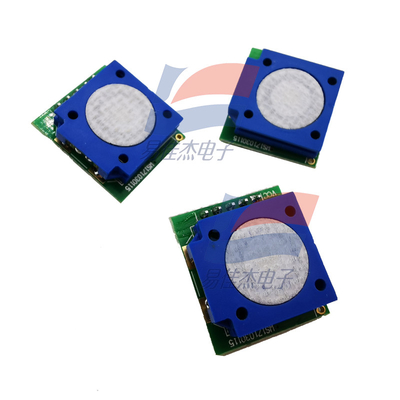

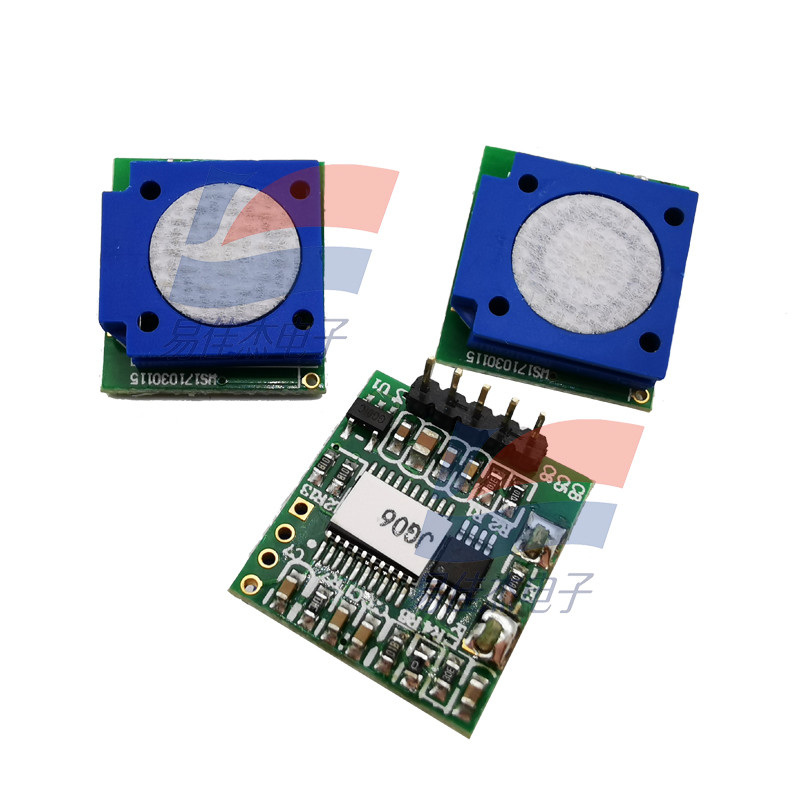

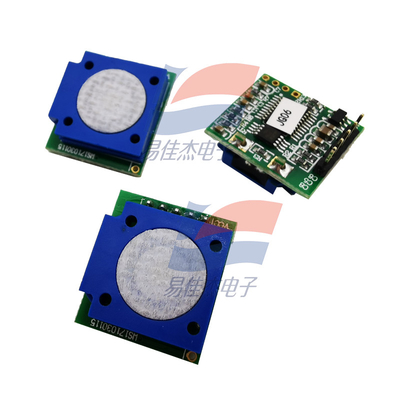

ZE27-O3 Ozone Module Electrochemistry Gas Sensors
ZE27-O3 electrochemical ozone module is a general-purpose, miniaturized module. The use of electrochemical principle to detect ozone gas in the air has good selectivity and stability. Built-in temperature sensor for temperature compensation; with digital output, easy to use. ZE27-O3 is a general-purpose gas module designed and manufactured by closely combining mature electrochemical detection technology with sophisticated circuit design.
Datasheet:
| Working voltage | 3.7V ~ 5.5V (no voltage reverse polarity protection) |
| Warm-up time | ≤3 minutes |
| Response time | ≤90 seconds |
| Recovery time | ≤90 seconds |
| Range | 0～10ppm |
| Working temperature | -20℃～50℃ |
| Resolution | 0.01ppm |
| Working humidity | 15%RH-90%RH (non-condensing) |
| Storage temperature | -20℃～50℃ |
| Service life | 2 years (in air) |
