MIX8030 Electrochemical Alcohol Sensor Small Size Linear Output

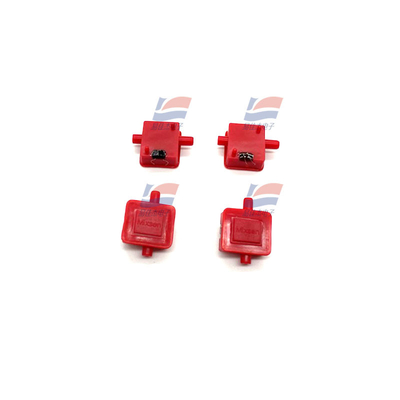

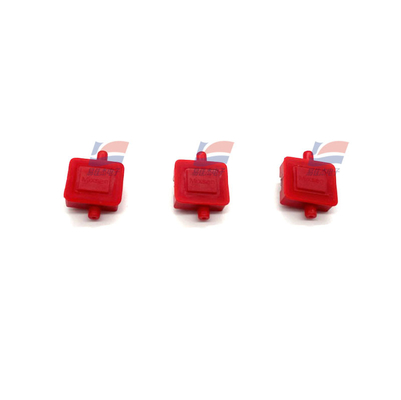

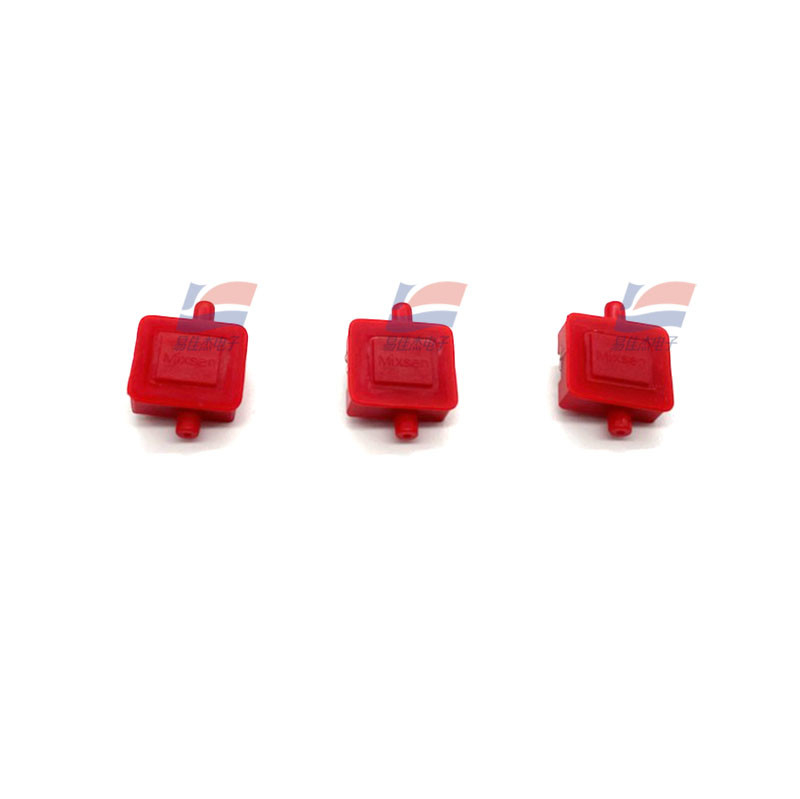

Large Image : MIX8030 Electrochemical Alcohol Sensor Small Size Linear Output

Product Details:

Place of Origin:	China
Brand Name:	Mixsen
Model Number:	MIX8030

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/Month

Contact Now

MIX8030 Electrochemical Alcohol Sensor Small Size Linear Output

Description

Detection Gas:

Alcohol (CH3CH2OH)

Range:

(0~1.0)mg/L

Maximum Measurement Limit:

2.0mg/L

Sensitivity:

(6±2)uA/(mg/L)

Highlight:

Small Size Electrochemical Alcohol Sensor

MIX8030 Electrochemical Alcohol Sensor

Linear Output Electrochemical Alcohol Sensor

MIX8030 Electrochemical Alcohol Sensor Small Size Linear Output

MIX8030 is an electrochemical alcohol gas sensor, which has the characteristics of small size, high sensitivity, high precision, linear output, long life, etc. It is widely used in household and commercial alcohol detection, traffic safety and other alcohol detection, high-altitude work alcohol detection, public places Alcohol testing, etc.

Applications
Home and commercial alcohol testing
Traffic safety and other alcohol testing
Working at heights alcohol testing
Alcohol testing in public places

Datasheet:

Response time	(T90) ≤20S
Load resistance	(recommended) 10Ω
Repeatability	± 0.006mg/L
Stability	(/month) <2%
Zero drift	(-20℃~40℃) -0.01mV~0.01mV
Storage temperature	0~20℃
Temperature range	-20~50℃
Humidity range	15%~90%RH non-condensing pressure range
Standard atmospheric pressure	±10%
Service life	2 years (in air)

MIX8030 Electrochemical Alcohol Sensor Small Size Linear Output 0
