Product Details:
|
Measurement Output: | PM100 | Range: | 0-20 Mg/m3 |
---|---|---|---|
Power Supply Voltage: | 5V | Working Current: | 120mA |
Highlight: | SDS198,PM100 Dust Detection Sensor,Laser Optical Dust Sensor |

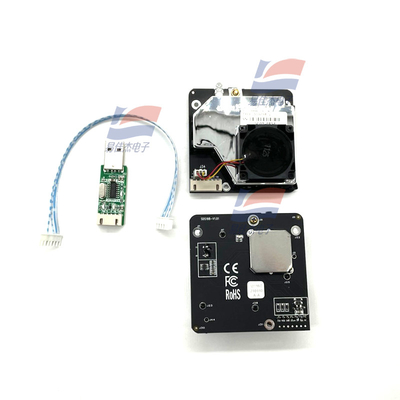

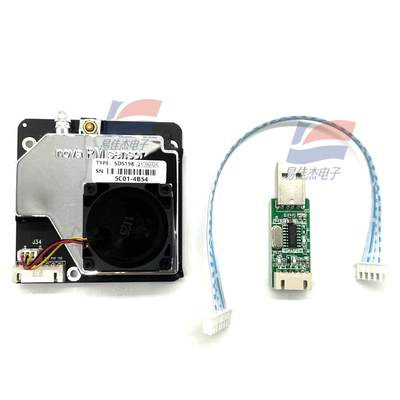

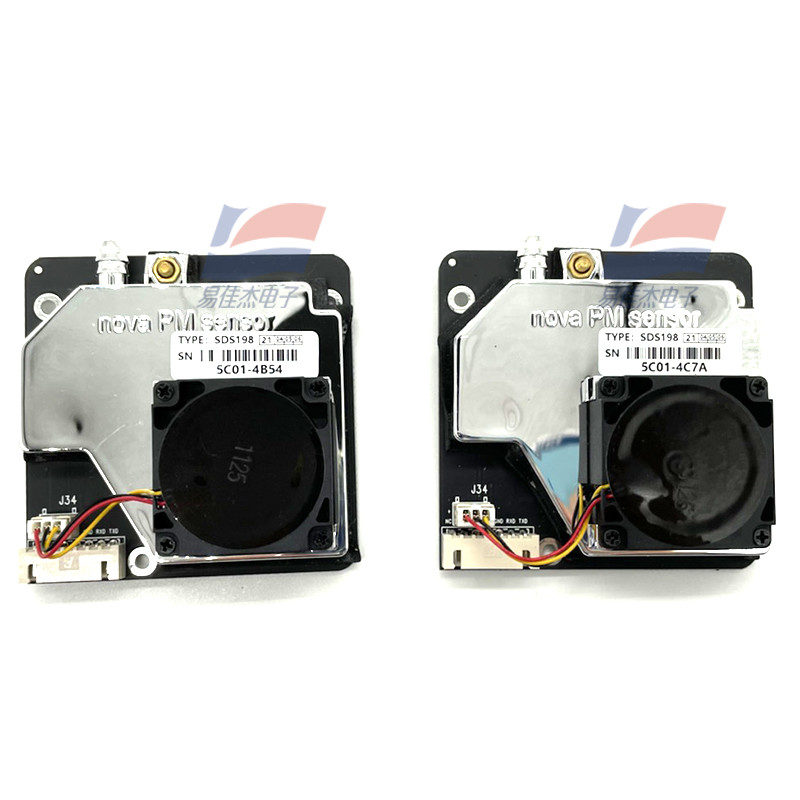

SDS198 Laser PM100 Sensor Particulate Matter Sensor Dust Sensor
PM100 sensor, also known as full dust sensor, dust sensor or TSP sensor. SDS198 uses the principle of laser scattering to obtain the mass concentration of suspended particles in the air ranging from 1 to 100 microns. It uses imported lasers and photosensitive components, and the data is stable and reliable. It has a built-in fan, digital output, and high integration. Due to factors such as wind and wind direction, the spatial distribution of TSP concentration is not uniform in many cases, such as construction sites, roads, stone processing plants, etc.
Datasheet:
Sleep current | 2 mA |
Operating temperature range | -20-50℃ 7 |
Response time | < 6 s |
Serial data output frequency | 1 Hz |
Sensitivity | 1 ug/m3 |
Repeatability | ≤±10% |
Relative error | ≤±15% |
Product size | 71x70x23mm |
