Product Details:
|
| Nominal Range: | 0 ~ 10 Ppm | Maximum Overload: | 50 Ppm |
|---|---|---|---|
| Sensitivity (20℃): | 2 ± 1 μA/ppm | Response Time (T90): | ≤ 90 S |
| Highlight: | Formaldehyde Electrochemical Sensors |
||

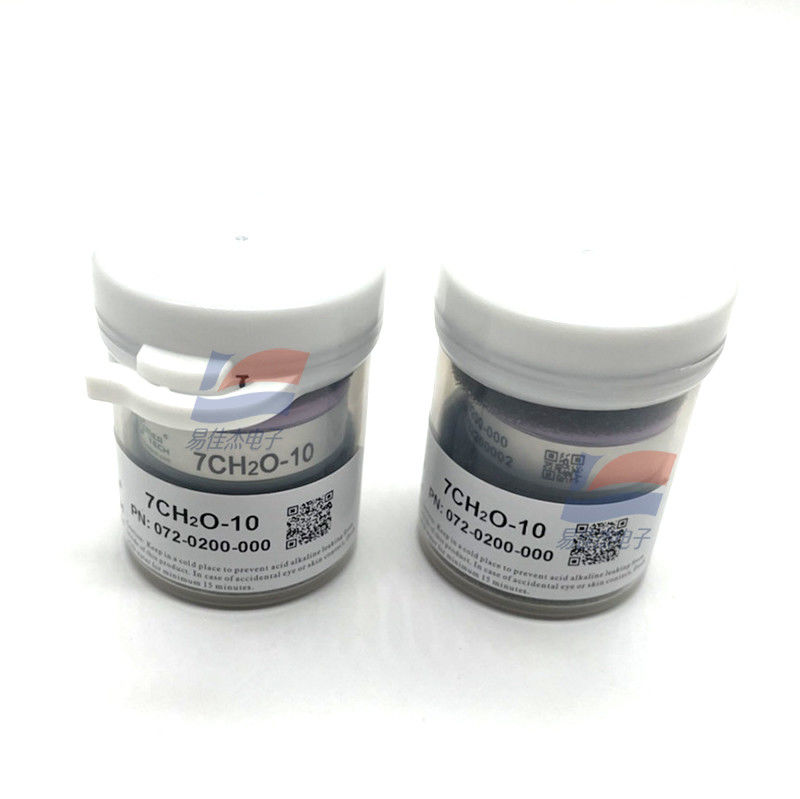

7CH2O-10 072-0200-000 Electrochemical Formaldehyde Sensors
Product Description
This sensor is designed for the measurement of Formaldehyde concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemic
Safety Note
This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.
It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
Datasheet:
| Zero Signal (20℃) | < ±0.2 μA |
| Baseline Shift (-20℃ ~ 50℃) | < 0.1 ppm |
| Resolution | 0.05 ppm |
| Linearity Linear up to | 10 ppm |
| Bias Voltage | 0 mV |
