Product Details:
|
| Nominal Range: | 0 ~ 10 Ppm | Maximum Overload: | 20 Ppm |
|---|---|---|---|
| Sensitivity (20℃): | 0.75 ± 0.20 μA/ppm | Response Time: | (T90) ≤ 60 S |
| Highlight: | 7 Series Electrochemical Methanethiol Sensors |
||

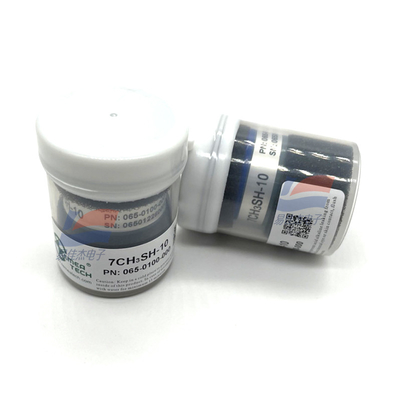

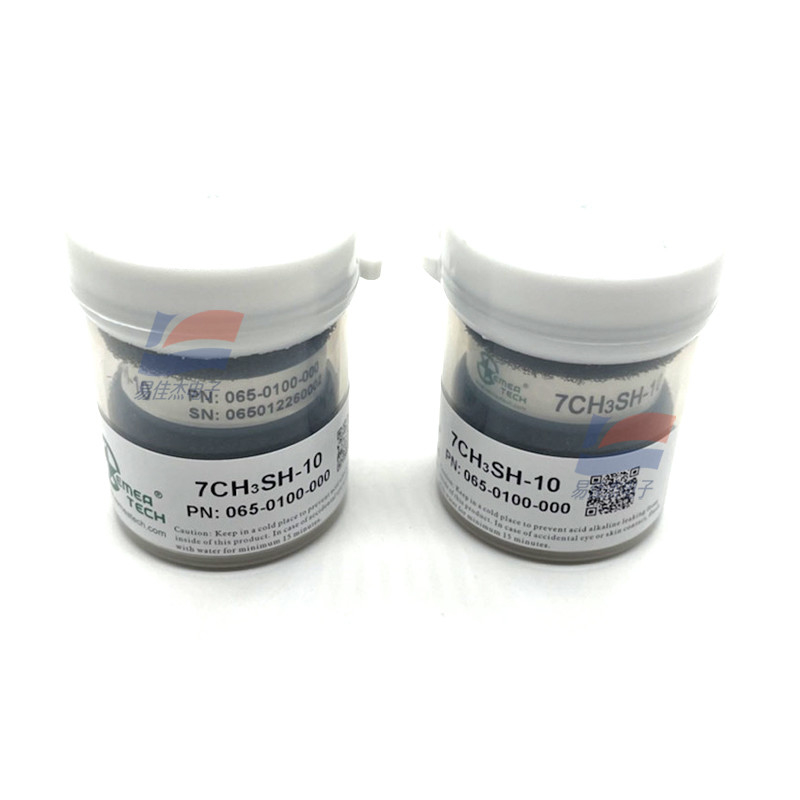

7CH3SH-10 065-0100-000 7 Series Electrochemical Methanethiol Sensors
Product Description
This sensor is designed for the measurement of Methanethiol concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Methanethiol sensors which made by the other manufacturers.
Safety Note
This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.
It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
Specification:
| Zero Signal (20℃) | < ±0.2 μA |
| Baseline Shift (-20℃ ~ 50℃) | < 0.6 ppm |
| Resolution | 0.1 ppm |
| Linearity | Linear up to 10 ppm |
| Bias Voltage | 0 mV |
