Product Details:
|
| Nominal Range: | 0 ~ 100 Ppm | Maximum Overload: | 200 Ppm |
|---|---|---|---|
| Sensitivity (20℃): | 0.25 ± 0.1 μA/ppm | Response Time (T90): | ≤ 30 S |

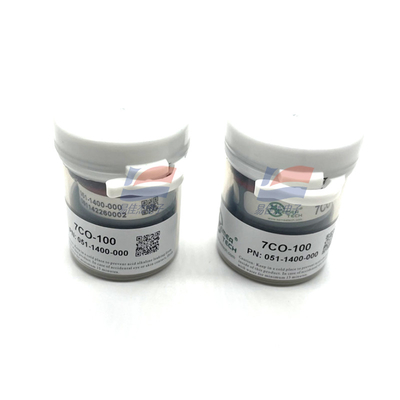

7CO-100 051-1400-000 Gas CO Sensors 7 Series Electrochemical Carbon Monoxide
Product Description
This sensor is designed for the measurement of Carbon Monoxide concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Carbon Monoxide sensors which made by the other manufacturers.
Installation
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.
Datasheet:
| Zero Signal (20℃) | < ±0.4 μA |
| Baseline Shift (-20℃ ~ 50℃) | < 1 ppm |
| Resolution | 0.1 ppm |
| Linearity | Linear up to 100 ppm |
| Bias Voltage | 0 mV |
