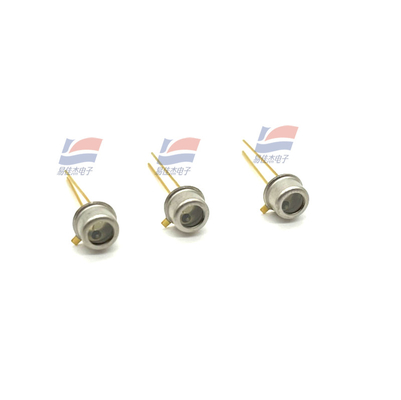

0.25mm2 UV Flame Sensor GT-UVC-M For Solar Blind UV Detection

Product Description:

GT-UVC-M Uv Flame Detector Is Used For Solar Blind UV Detection

Features:

Typical applications: solar blind UV detection, UV flame detection, UV water disinfection probe

Broad band UVA+UVB+UVC photodiode l Photovoltaic mode operation l TO-39 metal housing l Good visible blindness l High responsivity and low dark current Applications: UV index monitoring, UV radiation dose measurement, flame detecti

Operation temperature range Topt -25-85 oC

Storage temperature range Tsto -40-85 oC

Soldering temperature (3 s) Tsol 260 oC

Reverse voltage Vr-max -10 V

General characteristics (25 oC) Chip size A 4 mm2 Dark current (Vr = -1 V) Id <1 nA

Temperature coefficient Tc 0.05 %/ oC Capacitance (at 0 V and 1 MHz) Cp 72 pF

Spectral response characteristics (25 oC)

Wavelength of peak responsivisity λ p 355 nm

Peak responsivisity (at 355 nm) Rmax 0.20 A/W

Spectral response range (R=0.1×Rmax) - 210-370 nm

UV-visible rejection ratio (Rmax/R400 nm) - >10 4 -

Specifications:
