Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 100 Ppm |
|---|---|---|---|
| Maximum Overload: | 200 Ppm | Resolution (Electronics Dependent): | < 1 Ppm |
| Electrode: | 3-Electrode | ||
| Highlight: | 100 ppm Acetic Acid Sensor,C-100 Acetic Acid Sensor |
||

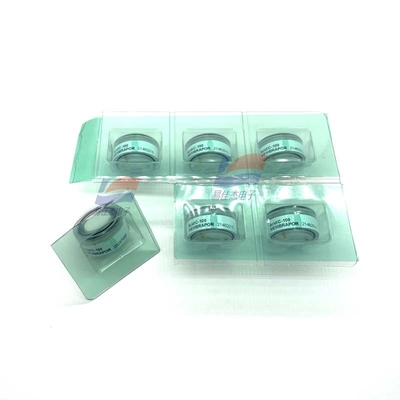

Acid/C-100 Acetic Acid Gas Sensor 3 Electrode Electrochemical RCOOH Gas Sensor in Compact Housing
Performance data recorded at 20 – 25 °C, 30 - 50% RH, 900 - 1100 mbar For further information about usage of Membrapor sensors, see application note MEM1. The data contained in this document is for guidance only. Membrapor AG accepts no liability for any consequential losses, injury or damage resulting from the use of this document or from any omissions or errors herein. Customers should test under their own conditions to ensure that the sensors are suitable for their own requirements.
Acetic Acid Gas Sensor Acid/C-100
RCOOH Gas Sensor in Compact Housing
Key Features
• Selective Measurement of Organic Acids
Applications
• Safety and Process Control
• Continuous Air Quality Monitoring
Datasheet:
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -10 °C to 50 °C |
| Pressure Range Atmospheric | ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
| Expected Operation | Life 2 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month |
| Storage Life | 6 months in container |
| Rec. Storage Temperature | 5°C - 20°C |
| Warranty Period | 12 months from date of dispatch |
