Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 100 Ppm |
|---|---|---|---|
| Maximum Overload: | 500 Ppm | Inboard Filter: | To Remove Effect From H2S And HCl |
| Highlight: | CF-100 Sulfur Dioxide Gas Sensor,SO2 Sulfur Dioxide Gas Sensor |
||

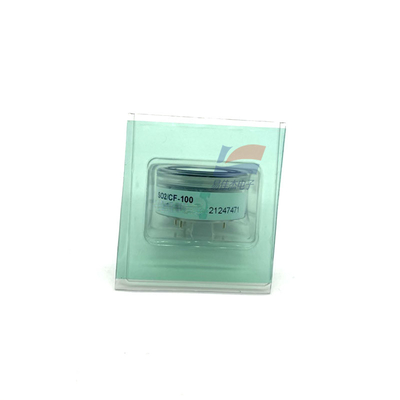

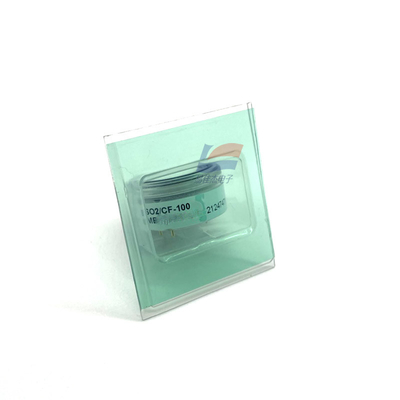

SO2 CF-100 Sulfur Dioxide Gas Sensor SO2 Gas Sensor in Compact Housing
Performance data recorded at 20 – 25 °C, 30 - 50% RH, 900 - 1100 mbar
For further information about usage of Membrapor sensors, see application note MEM1.
The data contained in this document is for guidance only. Membrapor AG accepts no liability for any consequential losses, injury or damage resulting from the use of this document or from any omissions or errors herein. Customers should test under their own conditions to ensure that the sensors are suitable for their own requirements.
Datasheet:
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -40 °C to 50 °C |
| Pressure Range Atmospheric | ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
| Expected Operation Life | 2 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month |
| Filter Life | N.D. |
| Storage Life | 6 months in container |
| Rec. Storage Temperature | 5°C - 20°C |
| Warranty Period | 12 months from date of dispatch |
