PGM-2500 O2 Electronic Gas Analyzer H2S 4 In 1 Gas Monitor For LEL CO

Large Image : PGM-2500 O2 Electronic Gas Analyzer H2S 4 In 1 Gas Monitor For LEL CO

Product Details:

Place of Origin:	USA
Brand Name:	RAE
Model Number:	PGM-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/Month

Contact Now

PGM-2500 O2 Electronic Gas Analyzer H2S 4 In 1 Gas Monitor For LEL CO

Description

Button:

Two-button Operation

Alarm Method:

95dB@30cm Buzzer, LED Flashing Battery

Battery:

Rechargeable Li-Ion Battery

Calibration:

Zero And Standard Gas Two-point Calibration

Highlight:

PGM-2500 Electronic Gas Analyzer

O2 Electronic Gas Analyzer

H2S 4 In 1 Gas Monitor

PGM-2500 Four-In-One Gas Detector For O2 LEL H2S CO

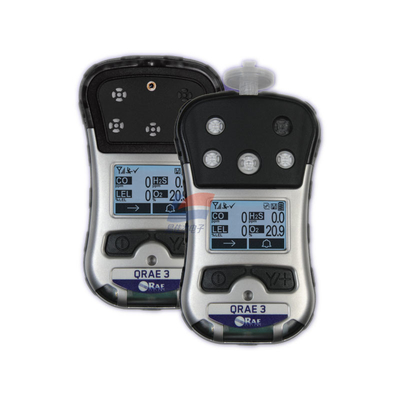

QRAE3 chemical operation multi-gas detector is a portable personal four-in-one gas detector with unlimited data transmission function, which is divided into two models: pump suction type and diffusion type. Continuous detection of oxygen (O2), combustible gas (LEL), harmful gases including hydrogen sulfide (H2S), carbon monoxide (CO), sulfur dioxide (SO2) and (HCN) to provide safety protection for workers in hazardous environments , can be widely used in metallurgy, fire protection, petroleum and petrochemical and other fields.

RAE PGM-2500 four-in-one gas detector sensor parameters:
O2: 0-30%VOL
LEL: 0-*LEL
CO: 0-500ppm
H2S: 0-100PPM
SO2: 0-20PPM
HCN: 0-50PPM

Datasheet:

Size

Diffusion: 5.5" H x 3.2" W x 1.5" W (140 mm x 82 mm x 42 mm)

Pump Type: 5.7" H x 3.2" W x 1.7" D (145 mm x 82

Weight

Diffusion: 12.9 oz (365 g with Li-ion battery and back clip)

Pumped: 14.5 oz (410 g, with Lithium battery, back clip and water trap

Sensor

Four replaceable sensors:

Ÿ LEL: for combustible gas detection

Ÿ Oxygen: liquid electrolyte

Ÿ Electrochemical gas sensor

Protection class

Pump suction: IP-65

Diffusion: IP-67

M Immunity

EMI and ESD testing: 100MHz to 1GHz 30V/m, no alarm

Contact: ±4kV

Air: ±8kV, no alarm

Operating temperature

-4° to 122°F (-20° to 50°C)

Environment humidity

0% to 95%RH (non-condensing)

Display

Monochrome graphics display (128 x 80)

Display Dimensions: 1.57” W x 1.06” H (40 x 27 mm) with backlighting

Screen rotates automatically or on demand

PGM-2500 O2 Electronic Gas Analyzer H2S 4 In 1 Gas Monitor For LEL CO 0
