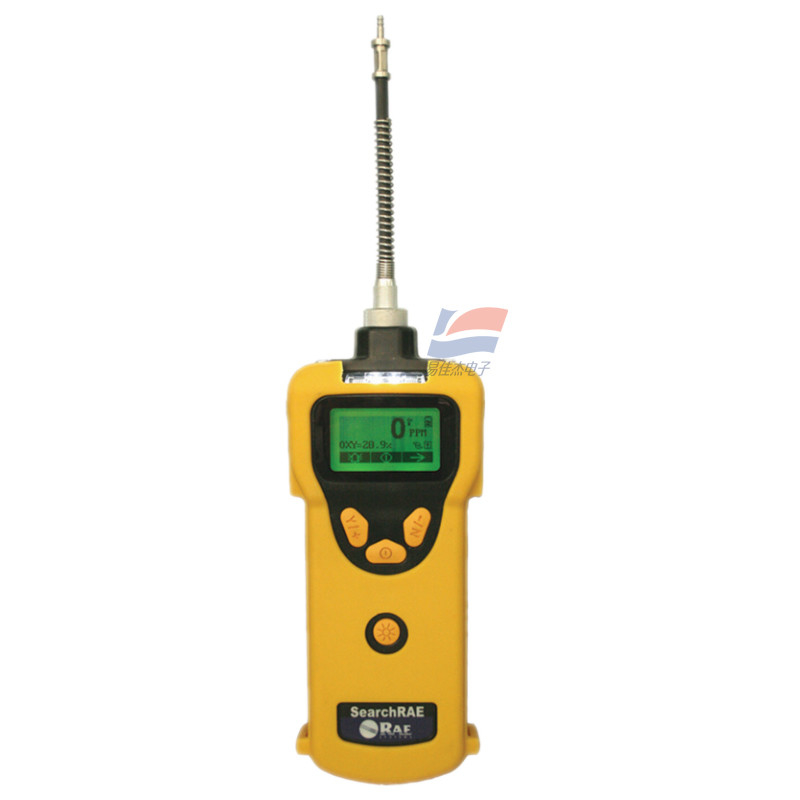

PGM-1600 Combustible Electronic Gas Analyzer , SearchRAE MOS Toxic Gas Detection Sensors

Large Image : PGM-1600 Combustible Electronic Gas Analyzer , SearchRAE MOS Toxic Gas Detection Sensors

Product Details:

Place of Origin:	USA
Brand Name:	RAE
Model Number:	PGM-1600

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/Month

Contact Now

PGM-1600 Combustible Electronic Gas Analyzer , SearchRAE MOS Toxic Gas Detection Sensors

Description

Button:	1 Operation Key, 2 Function Keys, 1 Light Switch	Alarm Method:	95dB@30cm Buzzer, LED Flashing
Sampling Interval:	1~3600 Seconds Adjustable	Calibration Method:	Zero/Extended Calibration
Pump Way:	Built-in
Highlight:	PGM-1600 , Combustible Electronic Gas Analyzer , MOS Toxic Gas Detection Sensors

PGM-1600 SearchRAE Combustible/Toxic Gas Detector Rubber Protective Case

SearchRAE
It is a combustible gas and toxic gas composite detector, optional combustible LEL and LEL/VOL dual-range sensor, electrochemical oxygen/toxic gas sensor and MOS sensor, small size, easy to carry, built-in Chinese menu, easy to use, can meet the Gas and petrochemical industry applications.

Supports multiple sensors

SearchRAE's three sensor slots for MOS, catalytic combustion LEL sensor, TC sensor, O2, CO, H2S electrochemical sensor
Detection range covering full scale

Automatic switching according to gas concentration, can achieve full coverage of ppm-LEL-VOL
Built-in powerful sampling pump

Specification:

Size	210×85×65mm
Weight	700g (including lithium battery)
Sampling method	Pump suction
Shell material	Engineering plastics, rubber jackets
Protection class	IP65, waterproof, completely dustproof
Anti-electromagnetic radiation	EMI/RF level: EMC Directive 89/336/EEC
Operating temperature	-20℃～+50℃
Environment humidity	0% to 95%RH (non-condensing)
Display	Graphic LCD with automatic backlight
Display language	Chinese/English + symbols

PGM-1600 Combustible Electronic Gas Analyzer , SearchRAE MOS Toxic Gas Detection Sensors 0
