PIN S6775 Electronic Gas Analyzer Photodiode , Silicon Infrared Combustible Gas Detector

Large Image : PIN S6775 Electronic Gas Analyzer Photodiode , Silicon Infrared Combustible Gas Detector

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S6775

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/Month

Contact Now

PIN S6775 Electronic Gas Analyzer Photodiode , Silicon Infrared Combustible Gas Detector

Description

Photosensitive Area:

5.5 × 4.8 Mm

Number Of Pixels:

Packaging:

Plastic

Reverse Voltage:

(max) 35 V

Highlight:

S6775 Electronic Gas Analyzer

Electronic Gas Analyzer Photodiode

Infrared Combustible Gas Detector

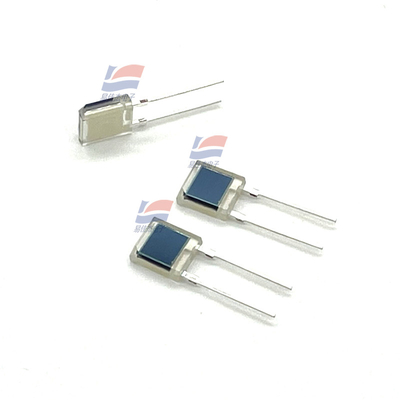

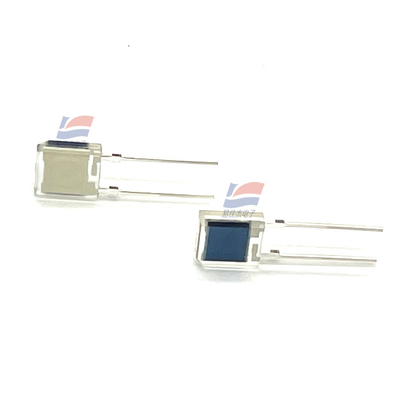

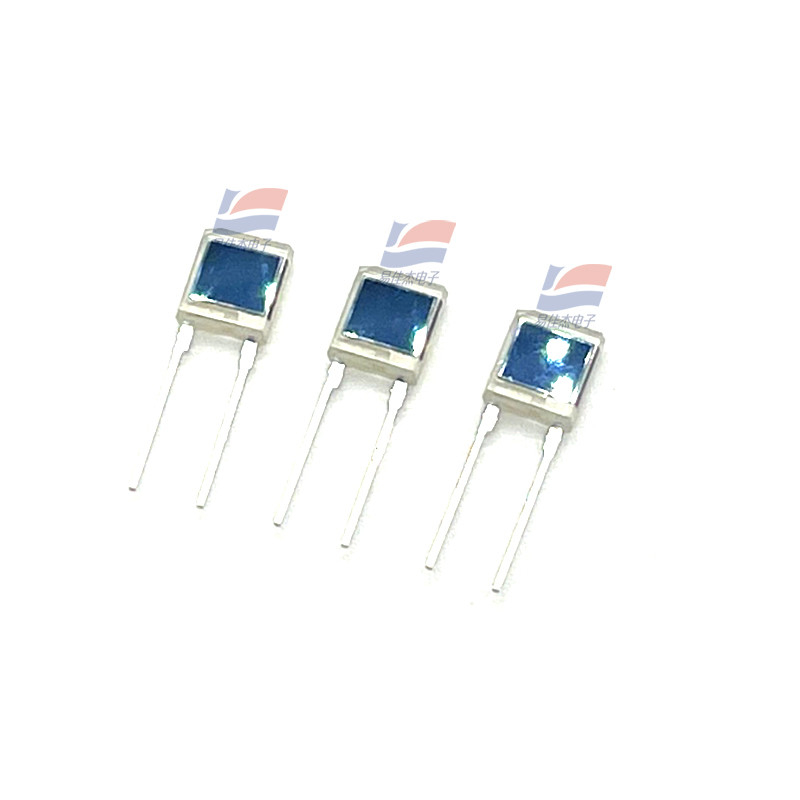

S6775 Silicon PIN Photodiode Photosensitive Area SIP Encapsulation

Plastic SIP (Single Wire Package)

The S6775 has a large photosensitive area and is packaged in a plastic SIP, which shields visible light and is suitable for detecting near-infrared wavelengths. It is characterized by high sensitivity, high-speed response, and large photosensitive area.

Product Features
● High-speed response
● High sensitivity
● Block visible light
● Plastic package: 7 × 7.8 mm
● Large photosensitive area: 5.5 × 4.8 mm

Datasheet:

Spectral response range	700 to 1100 nm
Peak Sensitivity	Wavelength (Typical) 960 nm
Sensitivity (typ)	0.68 A/W
Dark current (max)	10000 pA
Junction capacitance (typ.)	40 pF
Cutoff frequency (typ.)	15 MHz
Measurement Conditions	Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=960 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz
