PIN S6775 Si Pin Photodiode Single In Line Package Large Photosensitive Area

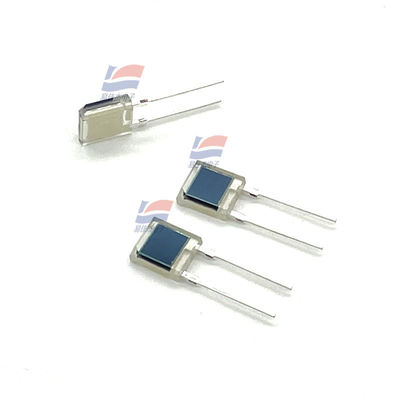

Large Image : PIN S6775 Si Pin Photodiode Single In Line Package Large Photosensitive Area

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S6775

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/Month

Contact Now

PIN S6775 Si Pin Photodiode Single In Line Package Large Photosensitive Area

Description

Photosensitive Area:

5.5 × 4.8 Mm

Number Of Pixels:

Packaging:

Plastic

Reverse Voltage:

(max) 35 V

Highlight:

S6775 Electronic Gas Analyzer

Electronic Gas Analyzer Photodiode

Infrared Combustible Gas Detector

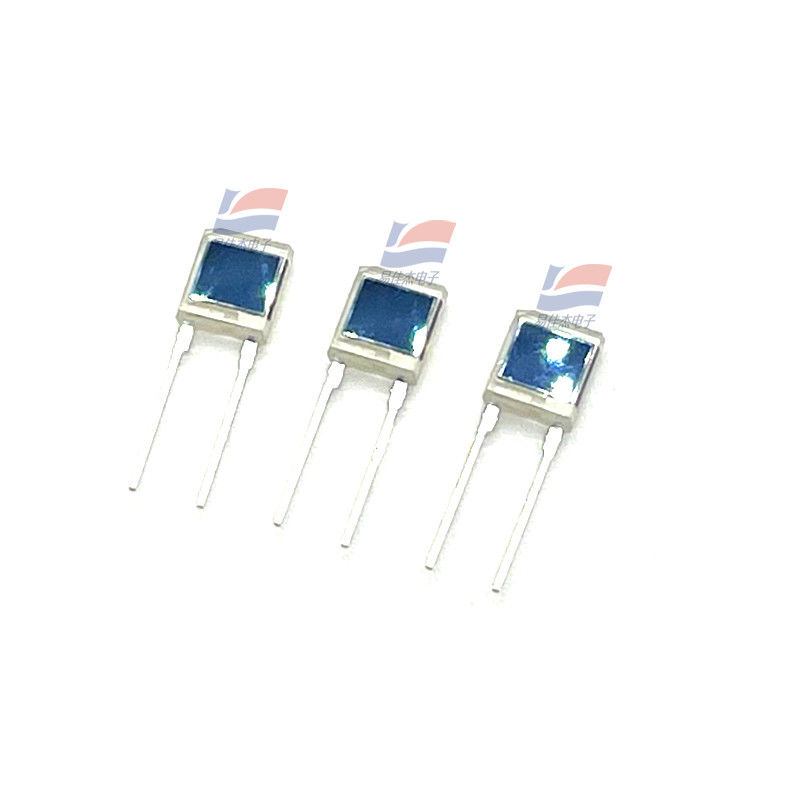

PIN S6775 Si Pin Photodiode Single In Line Package Large Photosensitive Area

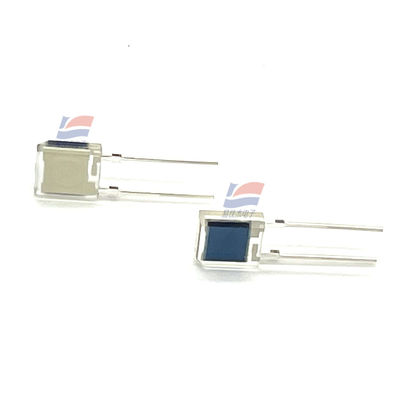

Plastic SIP (Single Wire Package)

The S6775 has a large photosensitive area and is packaged in a plastic SIP, which shields visible light and is suitable for detecting near-infrared wavelengths. It is characterized by high sensitivity, high-speed response, and large photosensitive area.

Product Features
● High-speed response
● High sensitivity
● Block visible light
● Plastic package: 7 × 7.8 mm
● Large photosensitive area: 5.5 × 4.8 mm

Datasheet:

Spectral response range	700 to 1100 nm
Peak Sensitivity	Wavelength (Typical) 960 nm
Sensitivity (typ)	0.68 A/W
Dark current (max)	10000 pA
Junction capacitance (typ.)	40 pF
Cutoff frequency (typ.)	15 MHz
Measurement Conditions	Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=960 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz

PIN S6775 Si Pin Photodiode Single In Line Package Large Photosensitive Area 0
