Product Details:
|
| Detection Principle: | Catalytic Combustion Type | Sensor Smart: | Sensor |
|---|---|---|---|
| Sampling Method: | Diffusion | Working Power: | 9~28VDC |
| Highlight: | FGM3100 Combustible Gas Detector,FGM3100 Gas Analyzer,Fixed Combustible Gas Analyzer |
||

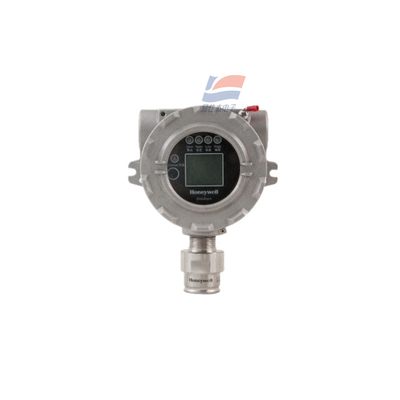

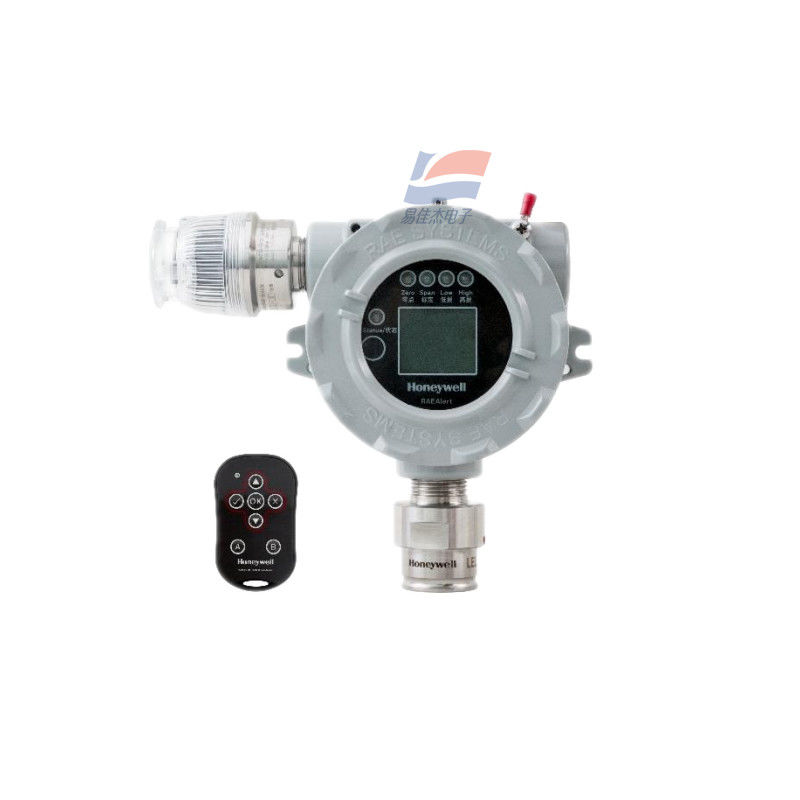

FGM3100 Gas Analyzer Fixed Combustible Gas Detector
RAEAlert combustible gas detector product features:
Smart sensor: adopts intelligent sensor, which has stronger anti-poisoning and anti-interference ability, and realizes sensor exchange, offline calibration and zero-point self-calibration functions
A variety of signal outputs: standard 4~20mA (three-wire system), RS485 Modbus, three-level switch output (normally open/normally closed optional) can be fine-tuned, which can be easily connected to industrial control systems such as PLC/DCS, and can also be used as a stand-alone machine control use
Friendly man-machine interface: large dot-matrix LCD display, support Chinese and English interface; no cover opening, infrared remote control operation, single-person maintenance; local alarm indication, integrated sound and light alarm (optional)
Prevent misoperation: the instrument has over-range and reverse polarity protection, which can avoid the danger caused by improper human operation
Abundant electrical interfaces: 3/4” NPT F, 3/4” NPT M, 1/2” NPT F/M, G3/4 F/M and other electrical interfaces are available for users to choose from
International certification: through ATEX, UL, CSA and other certifications, with international high-end quality
Datasheet:
| Maximum power | 170mA@24VDC |
| Output signal | 4~20mA, adjustable |
|
Other output
|
RS485 Modbus, relay module (optional) high alarm, low alarm and fault 30VDC/5A, normally open / normally closed optional
|
| Detection accuracy | ±2%F.S. |
| Response time (T90) | <15s |
| Electrical interface | 3/4” NPT M |
| Mounting method | 2” riser / wall mount |
| Protection class | IP65 |
| Ambient temperature | -40℃ ~+70℃ |
| Ambient humidity | 0~95% RH (non-condensing) |
