ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions

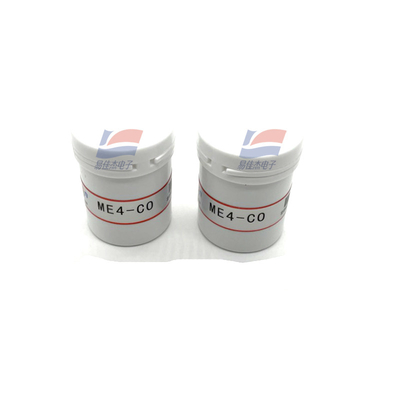

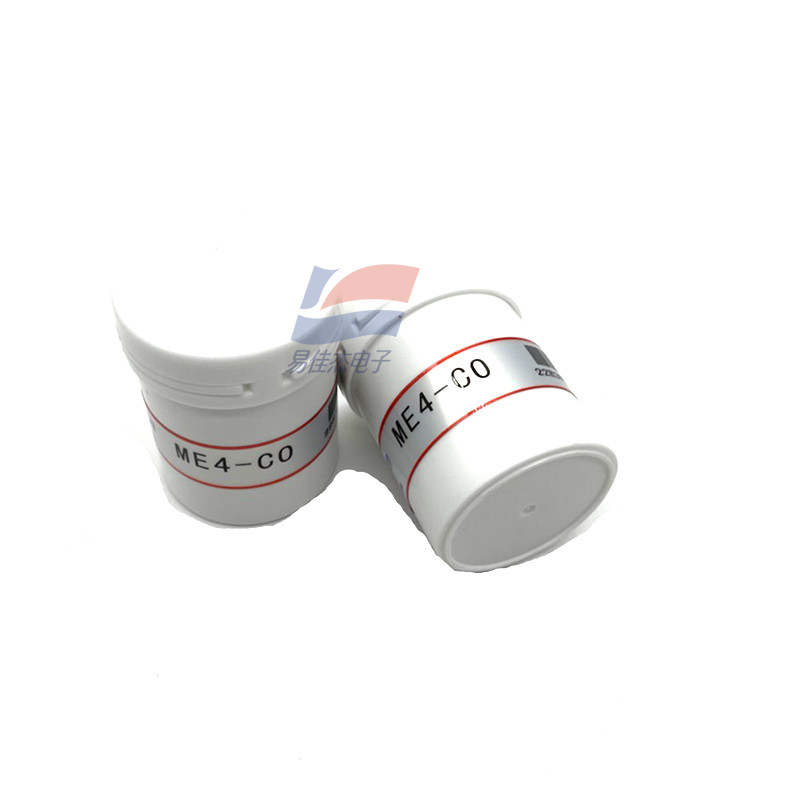

Large Image : ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	ME4-CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions

Description

Detection:

Gas Carbon Monoxide (CO)

Range:

0-1000ppm

Maximum Measurement Limit:

1500ppm

Sensitivity:

(0.080±0.02)uA/ppm

Highlight:

ME4-CO Carbon Monoxide Sensor

Carbon Monoxide Sensor 1500ppm

CO Sensor 10Ω

ME4-CO Carbon Monoxide Sensor CO Redox reactions

ME4-CO sensor is a constant potential electrolytic CO sensor. CO and O2 undergo corresponding redox reactions on the working electrode and the counter electrode, respectively, and release charges to form a current. The generated current is proportional to the CO concentration. The CO concentration can be determined by testing the current.

Main application
Widely suitable for carbon monoxide detection in petroleum and petrochemical, metallurgy, mining and other industrial places and environmental protection

Datasheet:

Resolution	1ppm
Response time (T90)	≤25s
Bias	0mV
Load resistance (recommended)	10Ω
Stability (/month)	<5%
Zero drift (-20℃-40℃)	9ppm
Temperature range	-20℃~50℃
Humidity range	15﹪~90﹪RH
Pressure range	Standard atmospheric pressure ±10%
Detection life	2 years (in air)

ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions 0
