Product Details:
|
| Product Model: | MP4 | Product Type: | Planar Semiconductor Gas Sensor |
|---|---|---|---|
| Standard Package Metal: | Package | Detection: | Gas Carbon Monoxide |
| Highlight: | MP4 Semiconductor Gas Sensor,Methane Semiconductor Gas Sensor,MP4 semiconductor gas detector |
||

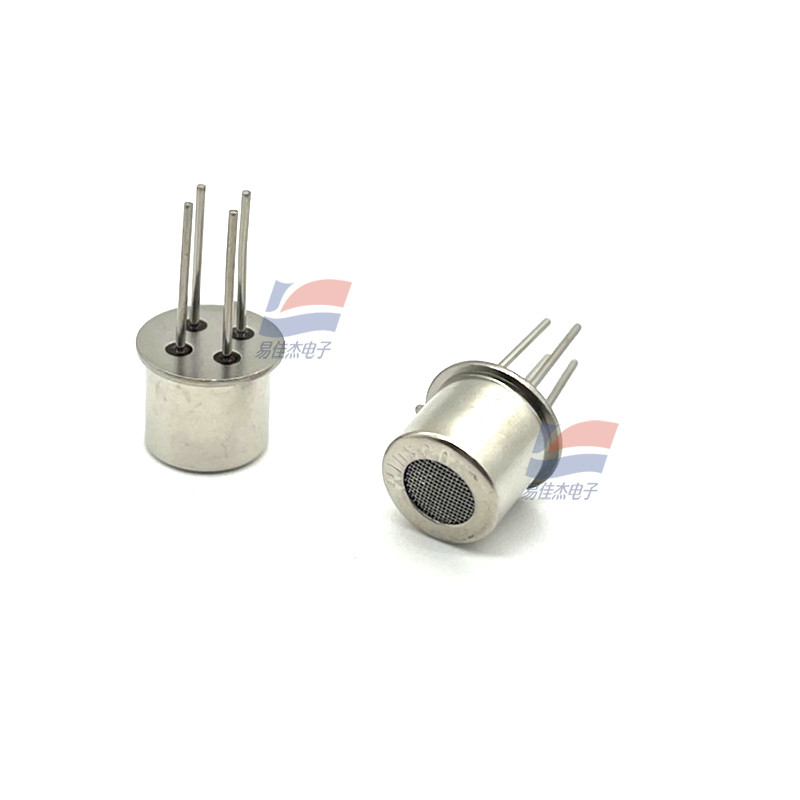

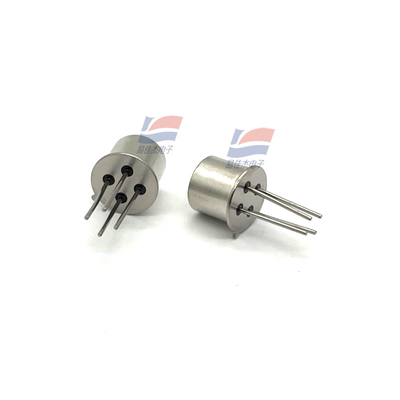

MP-4 Methane Natural Gas Sensor Biogas Planar Semiconductor Output Signal
MP-4 combustible gas sensor (gas sensor, natural gas sensor) adopts multi-layer thick film manufacturing process. The heater and metal oxide semiconductor gas sensing layer are respectively made on both sides of the micro Al2O3 ceramic substrate, and are packaged in a metal shell. The conductivity of the sensor changes when the detected gas is present in the ambient air. The higher the concentration of this gas, the higher the conductivity of the sensor. This change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.
Datasheet:
| Loop voltage | ≤24V DC |
| Heating voltage | 5.0V±0.1V AC or DC |
| Load Resistance | Adjustable |
| Heating resistance | 85Ω±15Ω (room temperature) |
| Heating power consumption | ≤350mW |
| Temperature Humidity | 20℃±2℃；55%±5%RH |
| Standard Test Circuit | Vc:5.0V±0.1V； VH:5.0V±0.1V |
| Preheat time | Not less than 48 hours |
