NAP-55S Combustible Gas Sensor Higher Durability Long Life Good Reactivity Single Head Type

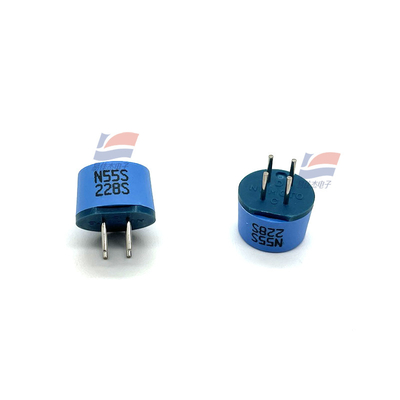

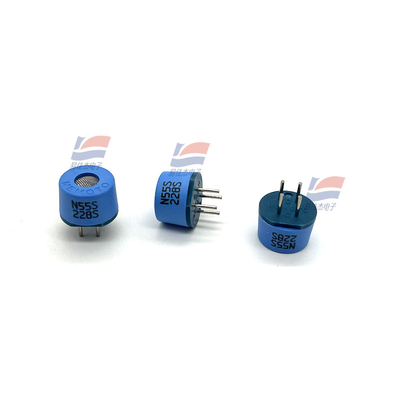

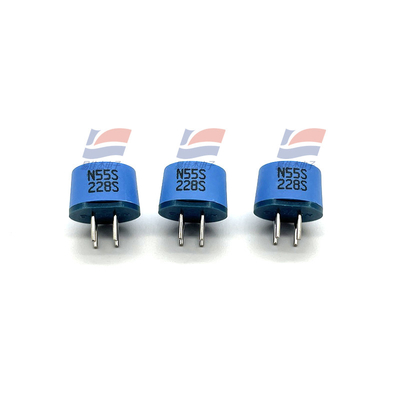

Large Image : NAP-55S Combustible Gas Sensor Higher Durability Long Life Good Reactivity Single Head Type

Product Details:

Place of Origin:	Japan
Brand Name:	Nemoto
Model Number:	NAP-55S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Packing
Delivery Time:	5-8workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000

Contact Now

NAP-55S Combustible Gas Sensor Higher Durability Long Life Good Reactivity Single Head Type

Description

Name:

Combustible Gas Sensor

Temperature:

-40 ~ +60℃

Humidity Below:

95%RH No Condensation

Model:

NAP-55S

Highlight:

NAP55S Combustible Gas Sensor

Long Life Combustible Gas Sensor

catalytic gas detector

NAP-55S Combustible Gas Sensor Higher Durability Long Life Good Reactivity Single Head Type

NAP-55S is a newly developed contact combustion type combustible gas sensor. Because the pin configuration is different from the current production
It is the same as the product NAP-55A, so it can be directly replaced. In addition, the opening is smaller than that of the NAP-55A
Therefore, the durability against poisoning gases such as silicone is higher. In contrast, than the NAP-55A sensor
long life.

Datasheet:

Supply voltage	AC 2.5 ± 0.25V (50 ~ 60Hz) DC 2.5 ± 0.25V
Current (when 2.5V is applied)	AC 170 to 190mA (50 to 60Hz) DC 170～190mA
Temperature	-40 ~ +60℃
Humidity below	95%RH No condensation
Reaction time	T90 : within 10 seconds

NAP-55S Combustible Gas Sensor Higher Durability Long Life Good Reactivity Single Head Type 0
